Designed for seamless integration.

The airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket 5AC Prism radios (not included) for co-location deployments.

AP-5AC-90-HD

5 GHz, 22 dBi sector antenna for Point-to-MultiPoint (PtMP) applications.

airPRISM 3x30° HD Sector Antenna

airPRISM 3x30° HD Sector

Default

Advanced RF isolation 2.4 GHz variable-beamwidth antenna.
The airMAX Titanium Sector may be custom configured for any deployment requiring a 60°, 90°, or 120° sector. The antenna gain changes according to the configured beamwidth: 17 dBi at 60°, 16 dBi at 90°, and 15 dBi at 120°.
Features:
<ul>
<li>Adjustable beamwidth configuration</li>
<li>Reduced co-location interference</li>
</ul>

AM-V2G-Ti

Custom-configurable 2.4 GHz antenna for any deployment.

airMAX Sector 2.4 GHz Titanium Antenna

airMAX Sector 2.4 GHz Titanium

Carrier-class sector antenna that was designed to seamlessly integrate with Rocket radios. Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.

AM-5AC21-60

5 GHz, 60º, 21 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.

airMAX AC 5 GHz, 21 dBi, 60º Sector Antenna

airMAX AC 5 GHz, 21 dBi, 60º Sector

airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

AM-M-V5G-Ti

Custom-configurable 5 GHz antenna for any deployment.

airMAX Sector 5 GHz Titanium Antenna

airMAX Sector 5 GHz Titanium

2.4 GHz, 15 dBi, 120º sector antenna with a Rocket M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
Carrier-class sector antenna that was designed to seamlessly integrate with Rocket radios. Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
Features:
<ul>
<li>2x2 dual-polarity performance</li>
<li>Robust mechanical design for outdoor application use</li>
<li>Plug and play integration</li>
</ul>

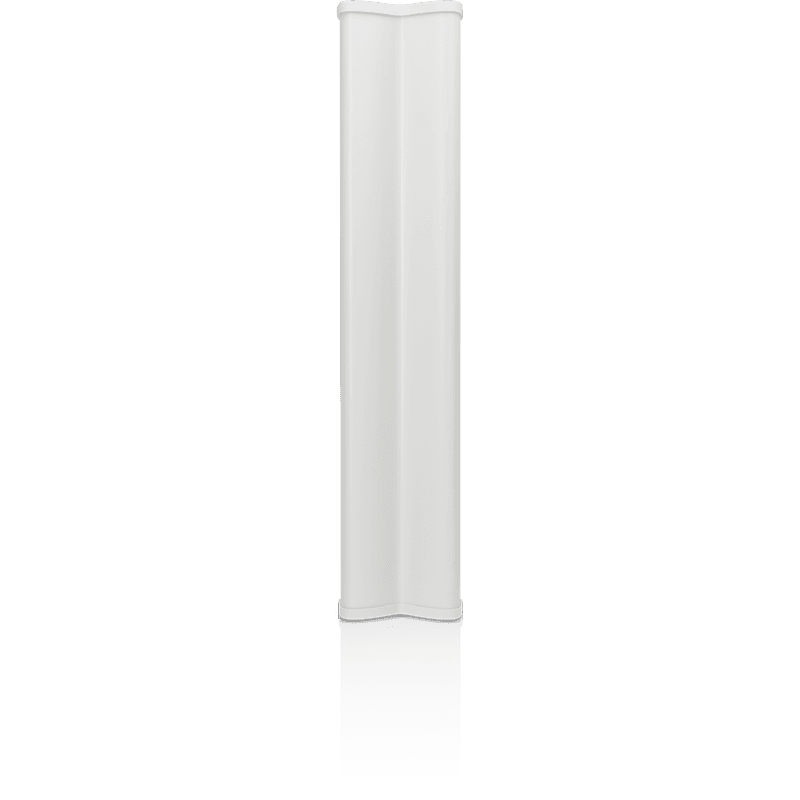

AM-2G15-120

2.4 GHz, 120º, 15 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

airMAX 2.4 GHz, 15 dBi, 120º Sector Antenna

airMAX 2.4 GHz, 15 dBi, 120º Sector

AM-2G16-90

2.4 GHz, 90º, 16 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

airMAX 2.4 GHz, 16 dBi, 90º  Sector Antenna

airMAX 2.4 GHz, 16 dBi, 90º  Sector

AM-5G2

Variant

120º, 19 dBi

90º, 20 dBi

5 GHz, 120º, 19 dBi or 90º, 20 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

UISP airMAX 5 GHz, 19/20 dBi Sector Antenna

airMAX 5 GHz, 19/20 dBi Sector

airMAX 5 GHz, 19/20 dBi Sector Antenna

AM-5G1

120º, 16 dBi

90º, 17 dBi

5 GHz, 120º, 16 dBi or 90º, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

airMAX 5 GHz, 16/17 dBi Sector Antenna

airMAX 5 GHz, 16/17 dBi Sector

AM-5AC22-45

5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.

AM-2G15-120
Dimensions (mm)	700 x 145 x 93 mm
Weight	4.0 kg
Frequency Range	2.3 - 2.7 GHz
Gain	15.0 - 16.0 dBi
HPOL Beamwidth	123° (6 dB)
VPOL Beamwidth	118° (6 dB)
Electrical Beamwidth	9°
Electrical Downtilt	4°
Max. VSWR	1.5:1
Wind Survivability	125 mph
Wind Loading	24 lbf @ 100 mph
Polarization	Dual-Linear
Cross-pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
