UISP sunMAX SolarPoint

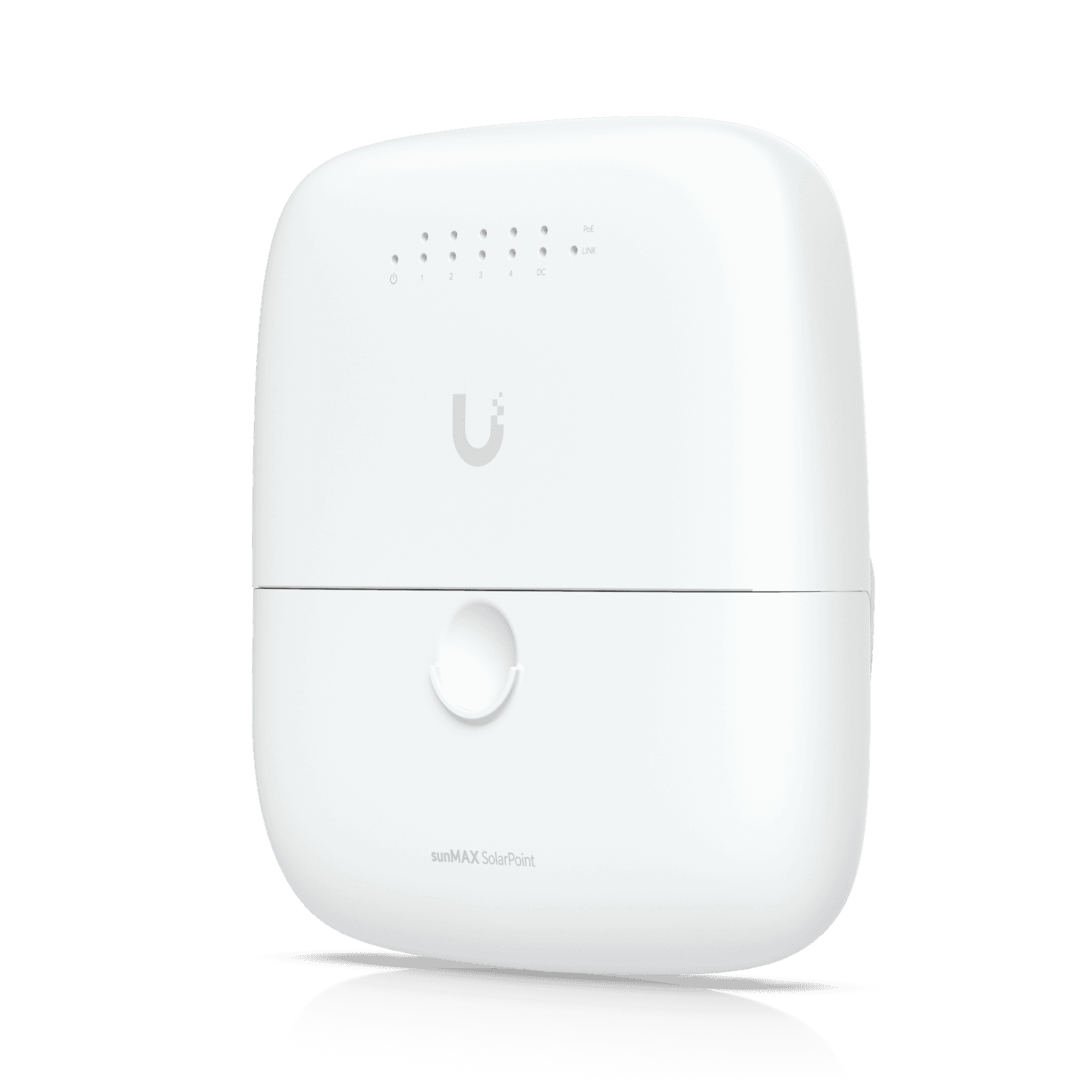

sunMAX SolarPoint
SM-SP-40
188,00 €
Sold Out
Remotely managed MPPT 24V 7A solar site charging appliance.

Integrated four-port, 24V PoE, 10/100 MbE switch

24V DC-out terminal with max. output 40W

External 24V battery charging up to 7Amps (supports SLA, AGL,AGM)

Indoor or cabinet (rack-mountable) use

To subscribe to back in stock e‑mails.
Technical Specifications
Mechanical
Dimensions202 x 186 x 50 mm (7.95 x 7.32 x 1.97")
Weight650 g (1.43 lb)
Enclosure CharacteristicsUV-Resistant Polycarbonate (Outdoor Use)
WeatherproofingIPX4
Hardware
Networking Interface(4) 10/100 Fast Ethernet Ports
Management InterfaceEthernet
WiFi (2.4 GHz)
ButtonReset
LEDsSystem, Output
Power SourcePV Panel (H4 Connectors)
Max. Power Consumption2W
PV Input Voltage Range10 - 60V (Reverse Protection, Surge Protection)
Maximum Open Circuit Voltage 60V
PV Maximum Current10A
PV Power ControlMPPT
Output Interfaces24VDC Passive PoE (Pins 4, 5+; 7, 8-)
24VDC Terminal Block
Output VoltageBattery Voltage Limited to 24V (Surge Protection)
Maximum Power OutputPoE: 17W
DC Out: 24W
Total: 40W Max.
Battery Type24V SLA, AGM, Gel lead battery
Absorption Voltage Steps27.4V, 28.2V, 29.1V, 30V
Float Charge Voltage95% of Absorption Voltage
Max. Charge Current7A
Under Voltage Protection22 – 23.6V Software Configurable
22V Hardware Protection
Two Priority Levels for Output Disable
Operating Temperature*-20 to 50° C (-4 to 122° F)
*Stops charging when limit exceeded and restarts charging with 5° C (9° F) hysteresis.
CertificationsFCC, IC, CE
