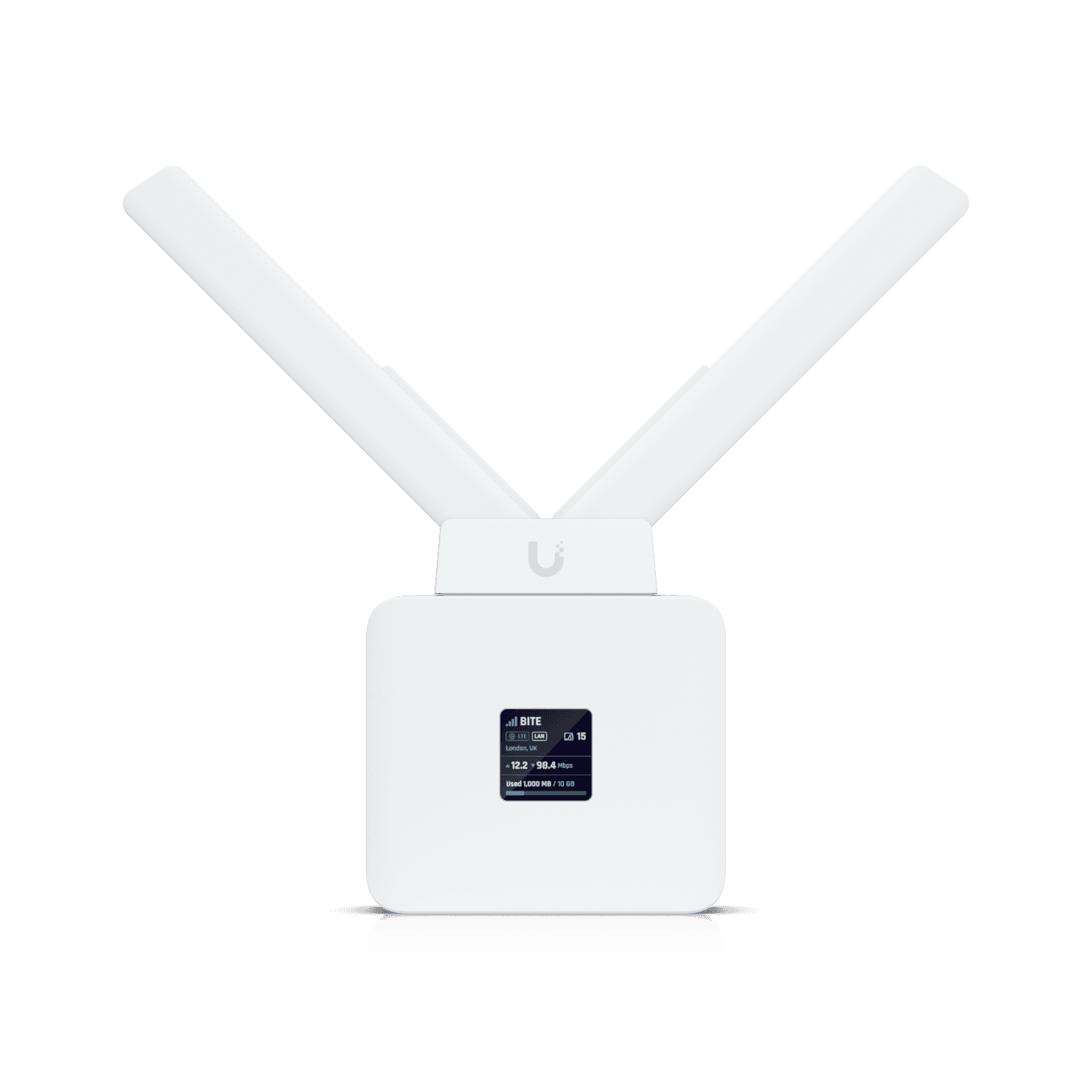

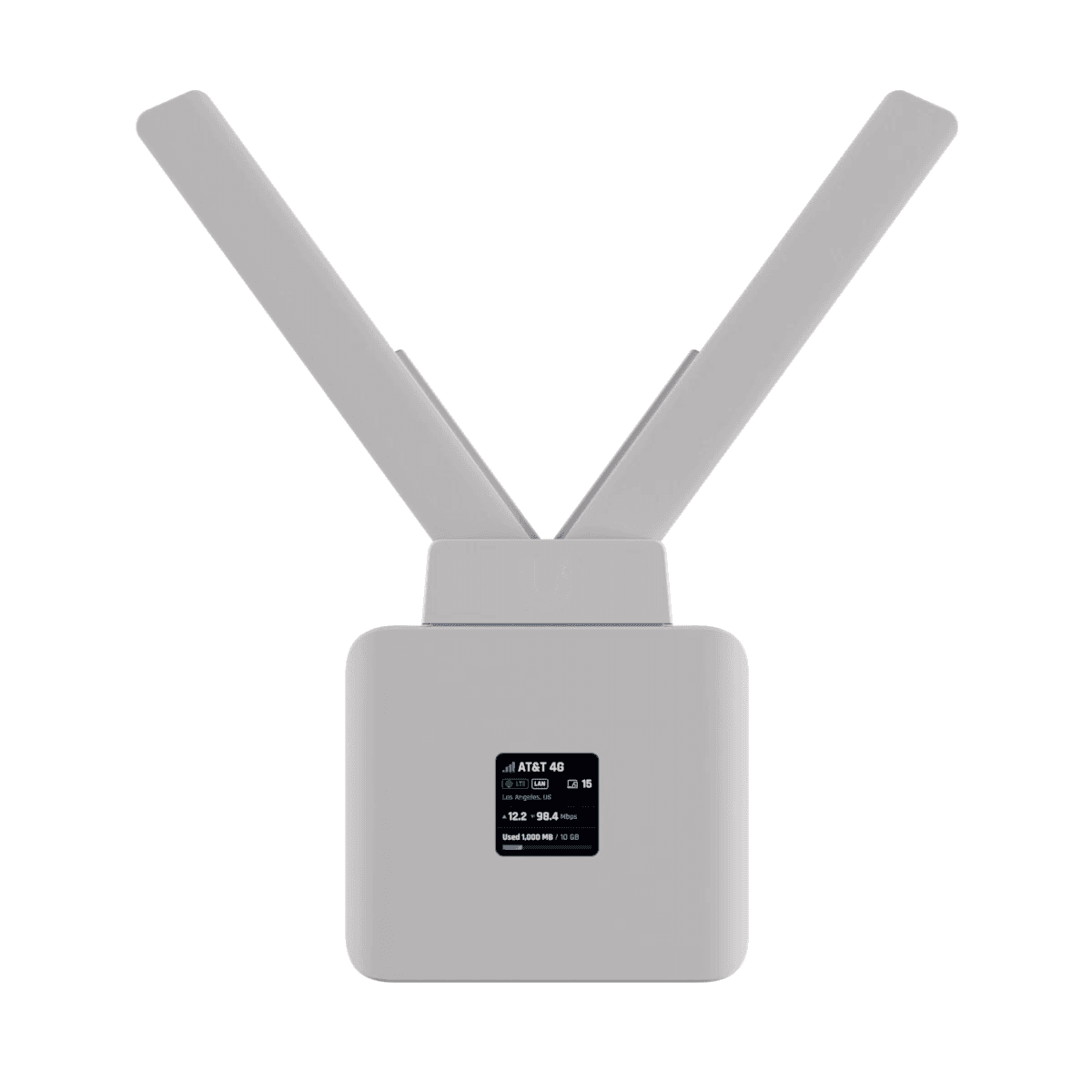

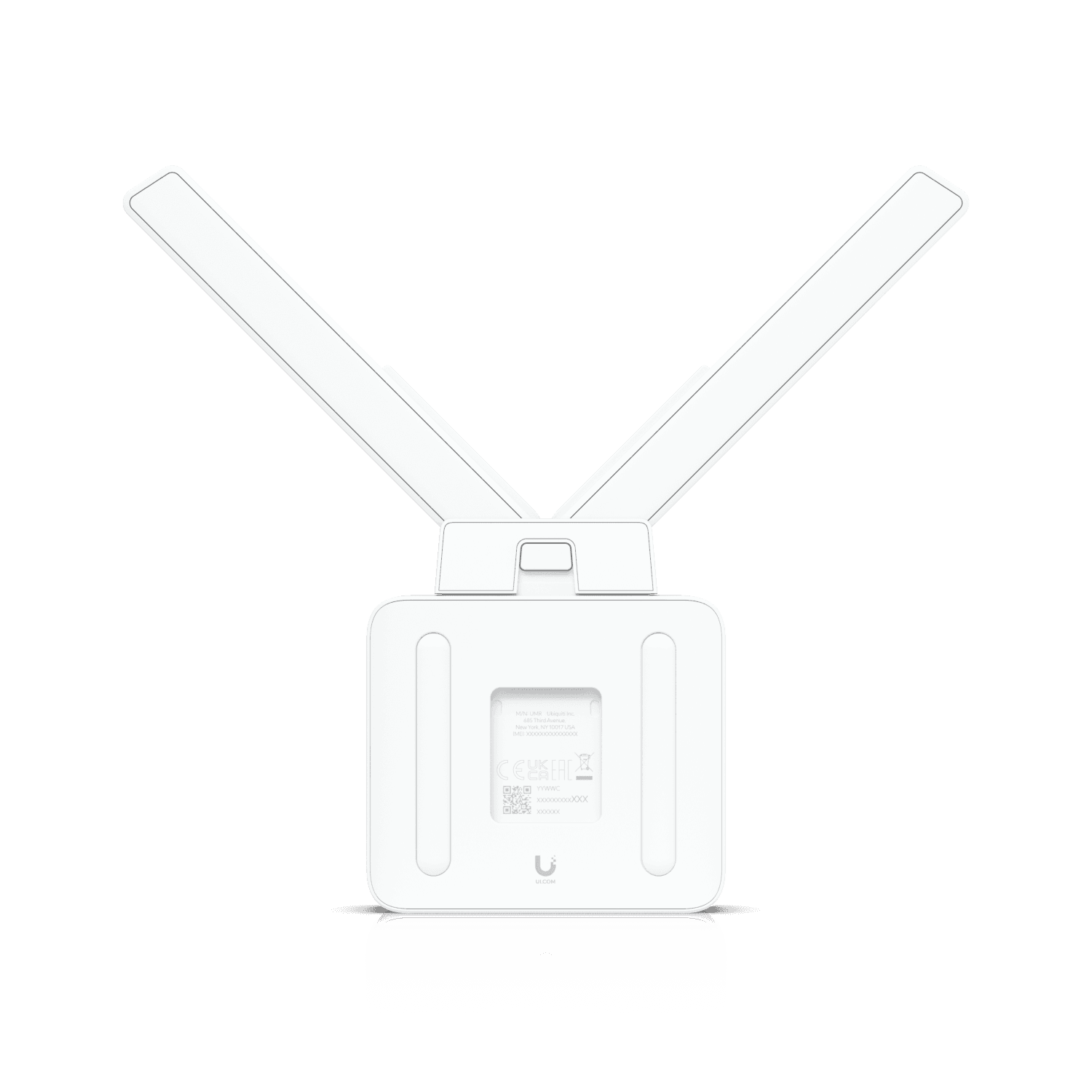

Mobile Router
184,00 €
Sold Out
Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Bring your own nano-SIM for LTE data.

LTE category 4 mobile WiFi router

VPN client routing

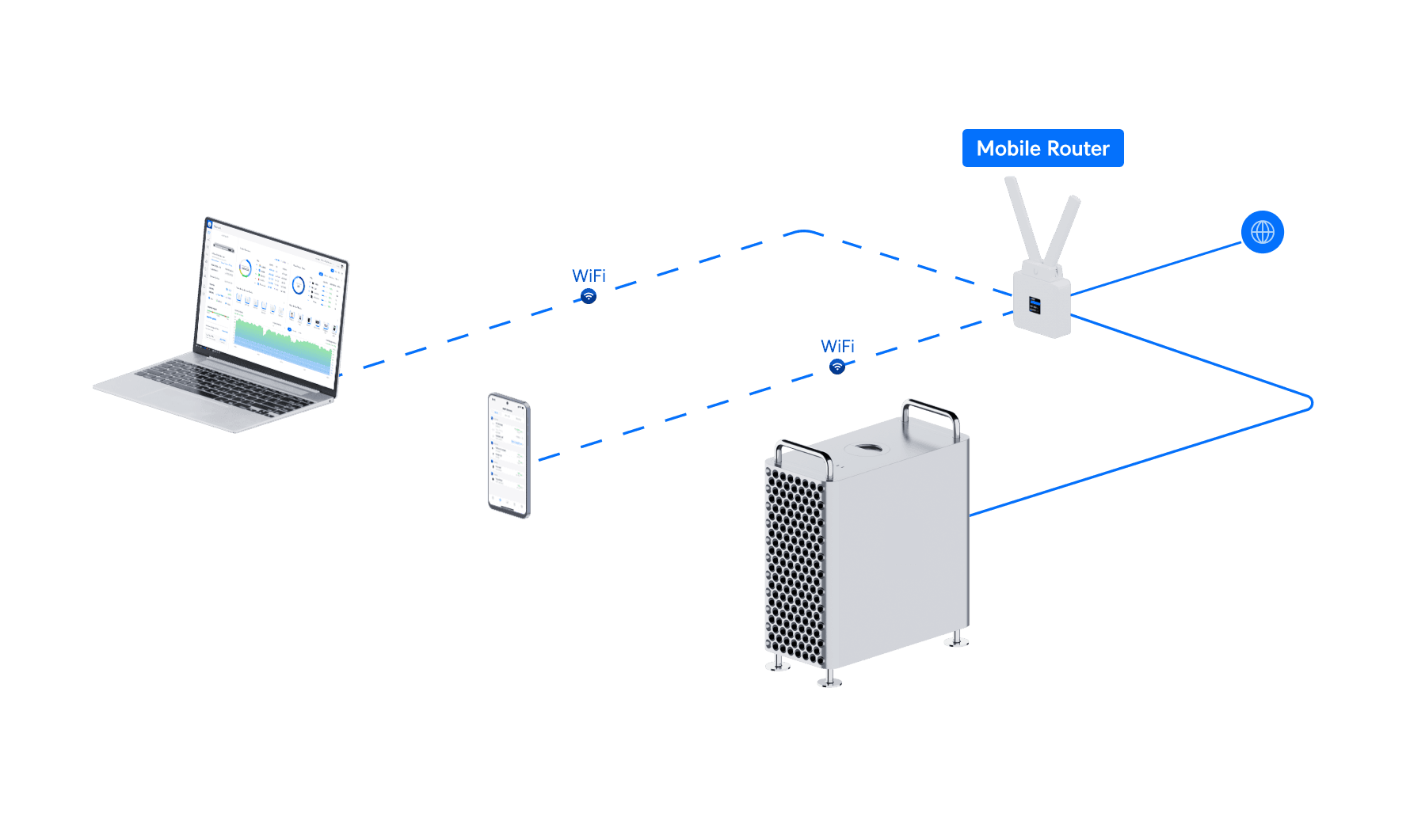

Automatic failover between LTE and wired WAN

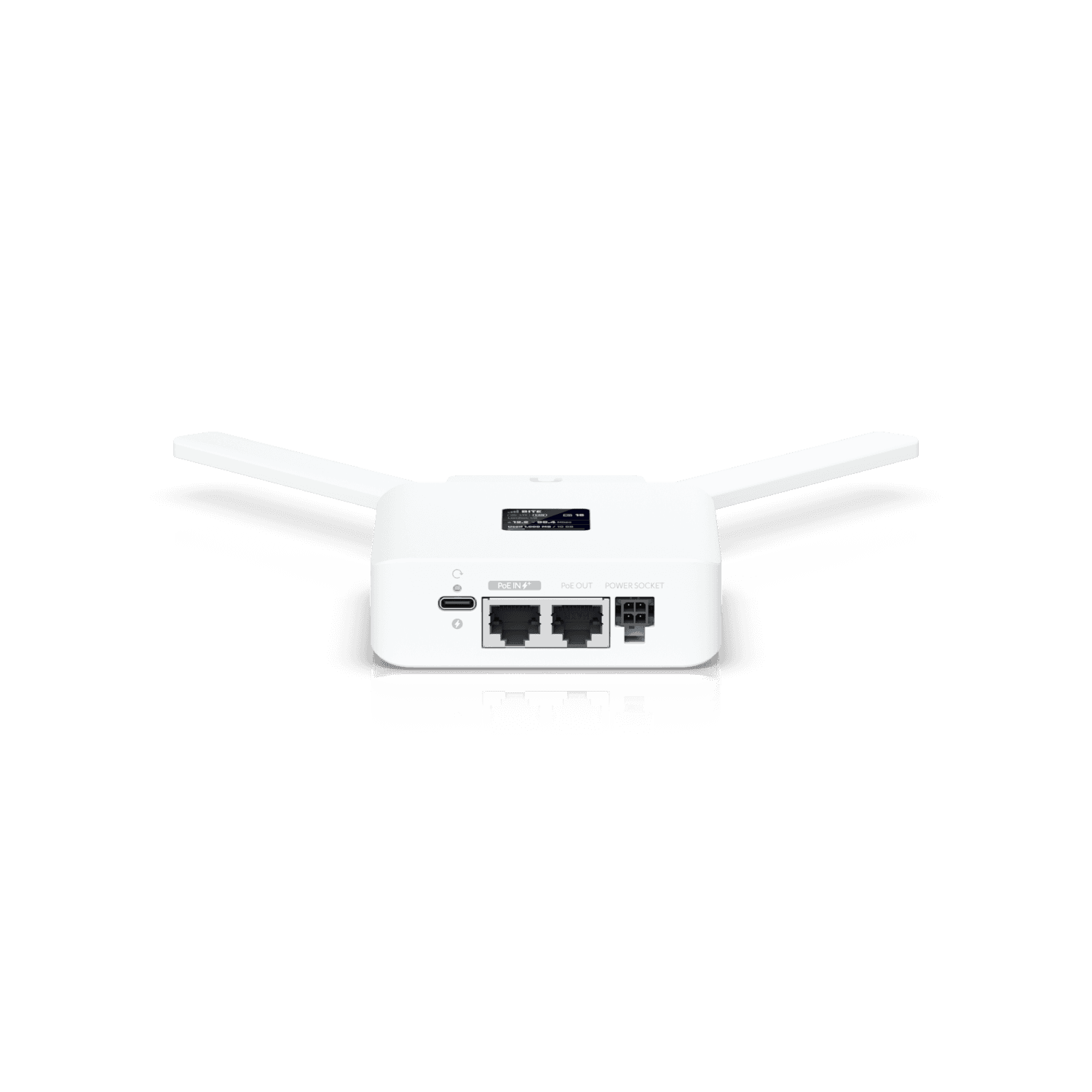

(2) GbE ports with (1) PoE output*

Powered using PoE, USB Type-C, or 4-pin DC power socket

Integrated GPS

Optional Mobility Cloud subscription**

*PoE+ input required for PoE passthrough.

**Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal for €2/month or £2/month per Mobile Router. Mobility Cloud is not required when using your own nano-SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.

To subscribe to back in stock emails.
Mobile Router Table Stand
17,57 €
Installation Guide
Technical Specifications

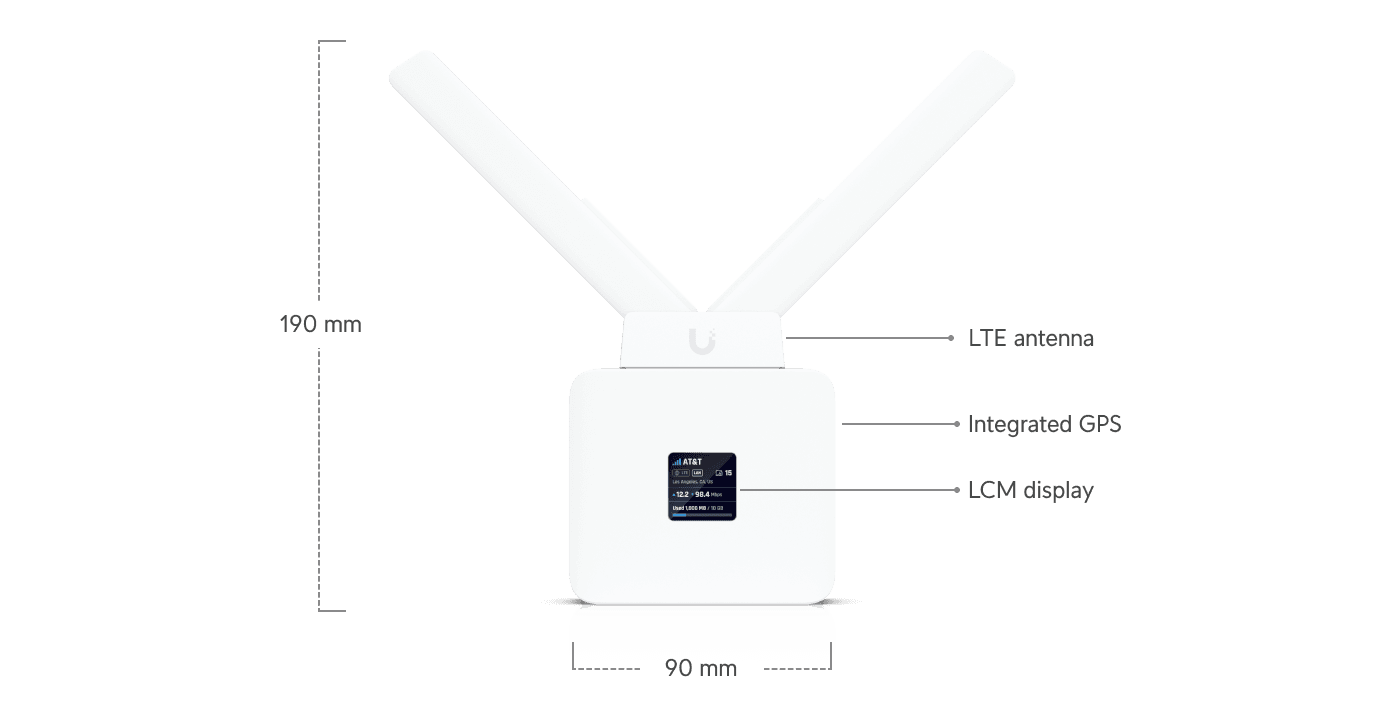

Dimensions220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1")
WeightWithout mount: 257 g (9.1 oz)
With mount: 303 g (10.7 oz)
Enclosure materialPolycarbonate
Mount materialWall mount: polycarbonate
DIN rail mount: steel
Processor74 Kc MIPS processor at 775 MHz
Memory information128 MB DDR2
Management interfaceEthernet
Networking interface(2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4
PoE interface(1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE+ switch.
LTE bandsB1, B3, B7, B8, 20, B28
3G bandsB1, B8
LTE throughput speed*Download 150 Mbps / Upload 50 Mbps
*Speed depends on network coverage and performance at the device location.
WiFi standards802.11 b/g/n, WiFi 2.4G, 20/40 MHz

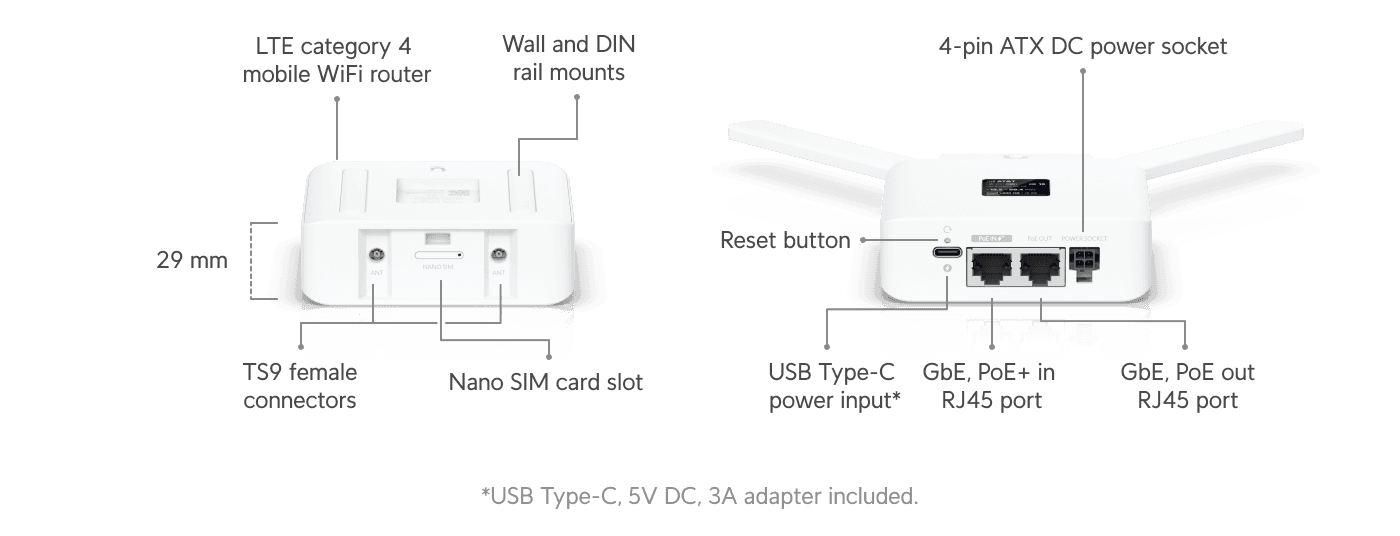

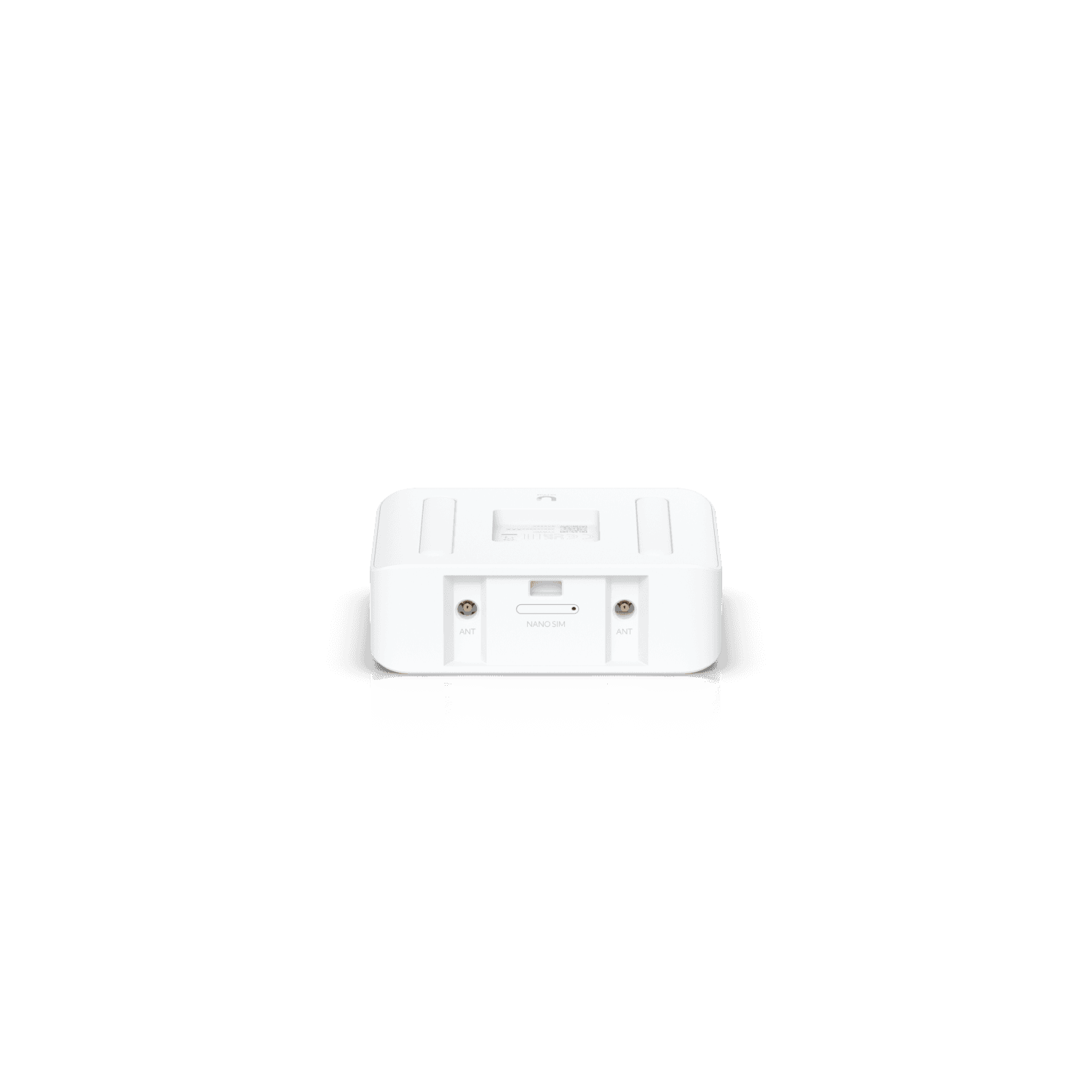

Antennas(1) External LTE antenna (main + aux) with TS9 male connectors
(1) Internal WiFi 2.4 GHz antenna
(1) Internal GPS antenna
Power supplyUniFi PoE switch (48—54V DC, 0.625A)
USB Type-C (5V DC, 3A)
4-pin* ATX DC power socket (9V DC, 1A)
*Please refer to the Installation Guide for power socket pinout.
Max. power consumption9W
LCM display1.3" screen
ButtonFactory reset
MountingDIN rail/wall (Included)
Ambient operating temperature-20 to 45° C (-4 to 113° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, UKCA, GCF
Supported WiFi Data Rates
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
