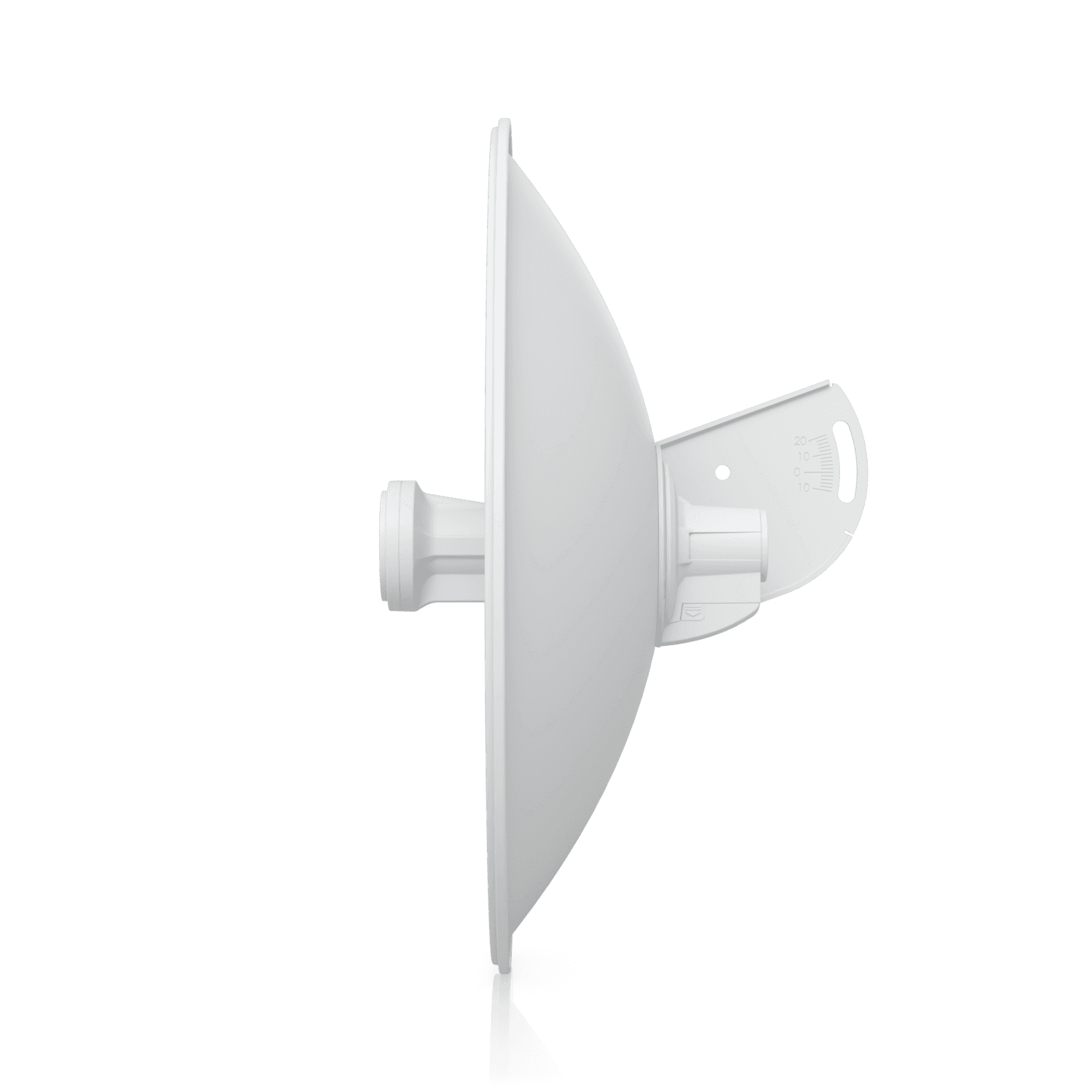

PowerBeam M5 400


    • PBE-M5-400

      Incorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.

      * Please note: This product is temporarily unavailable for the United Kingdom.


      PBE-M5-400
      Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
      Weight 1.753 kg (3.87 lb)
      Power Supply 24V, 0.5A Gigabit PoE
      Gain 25 dBi
      Networking Interface (1) 10/100/1000 Ethernet Port
      Processor Specs Atheros MIPS 74Kc, 560 MHz
      Memory 64 MB DDR2, 8 MB Flash
      LEDs (1) Power
      (1) LAN
      (4) WLAN
      Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
      Max. VSWR 1.5:1
      Channel Sizes 5/8/10/20/30/40 MHz
      Polarization Dual Linear
      Enclosure Outdoor UV Stabilized Plastic
      Mounting Pole-Mount (Kit Included)
      Wind Loading 278.4 N @ 120 km/h (63 lbf @ 75 mph)
      Wind Survivability 120 km/h (75 mph)
      ESD/EMP Protection Air: ± 24 kV
      Contact: ± 24 kV
      Operating Temperature -40 to 70° C (-40 to 158° F)
      Operating Humidity 5 to 95% Noncondensing
      Wireless Approvals FCC, IC, CE
      RoHS Compliance Yes
      Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
      Vibration Test IEC 68-2-6
      Temperature Shock Test IEC 68-2-14
      UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
      Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
