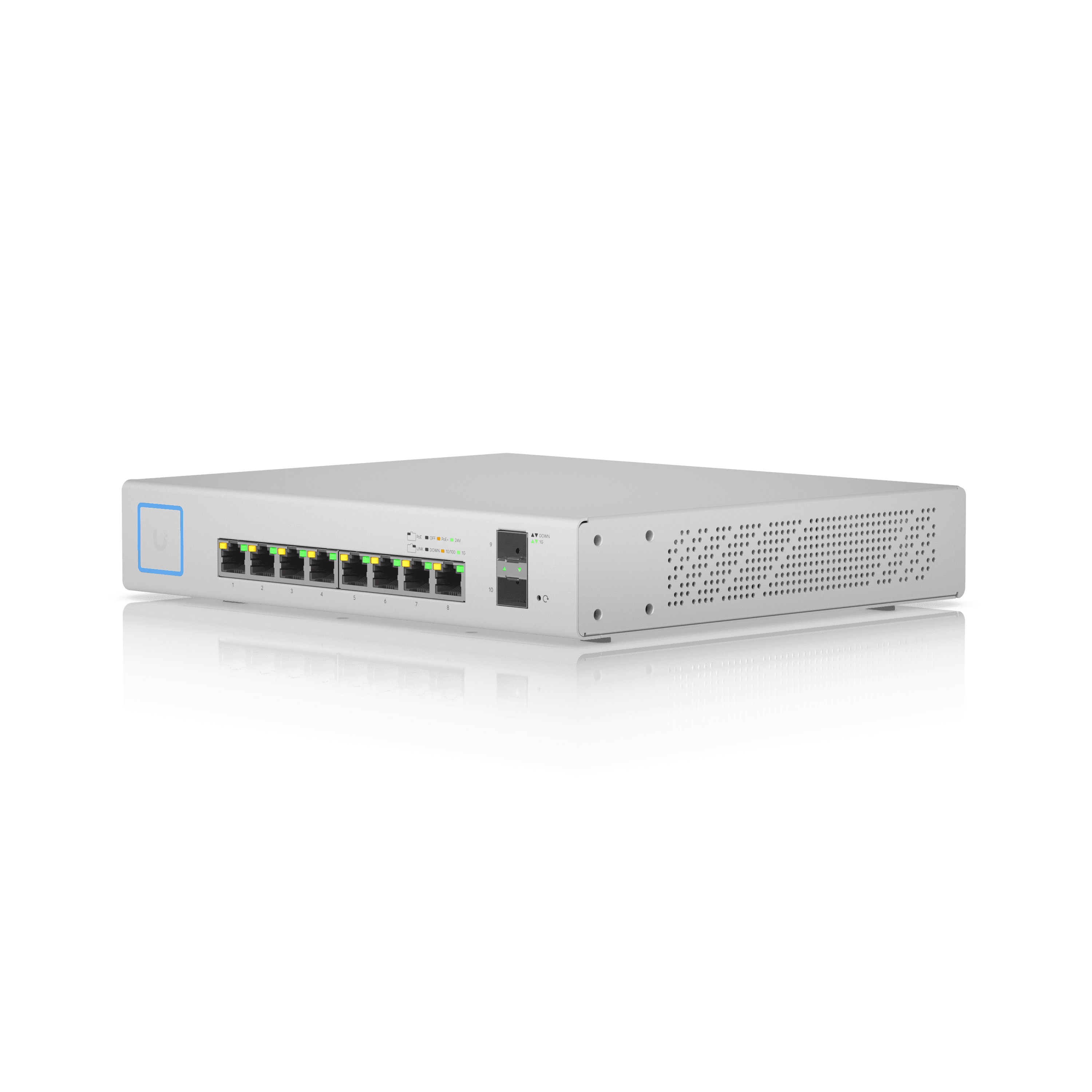

UniFi Switch 8 (150W)

    • US-8-150W

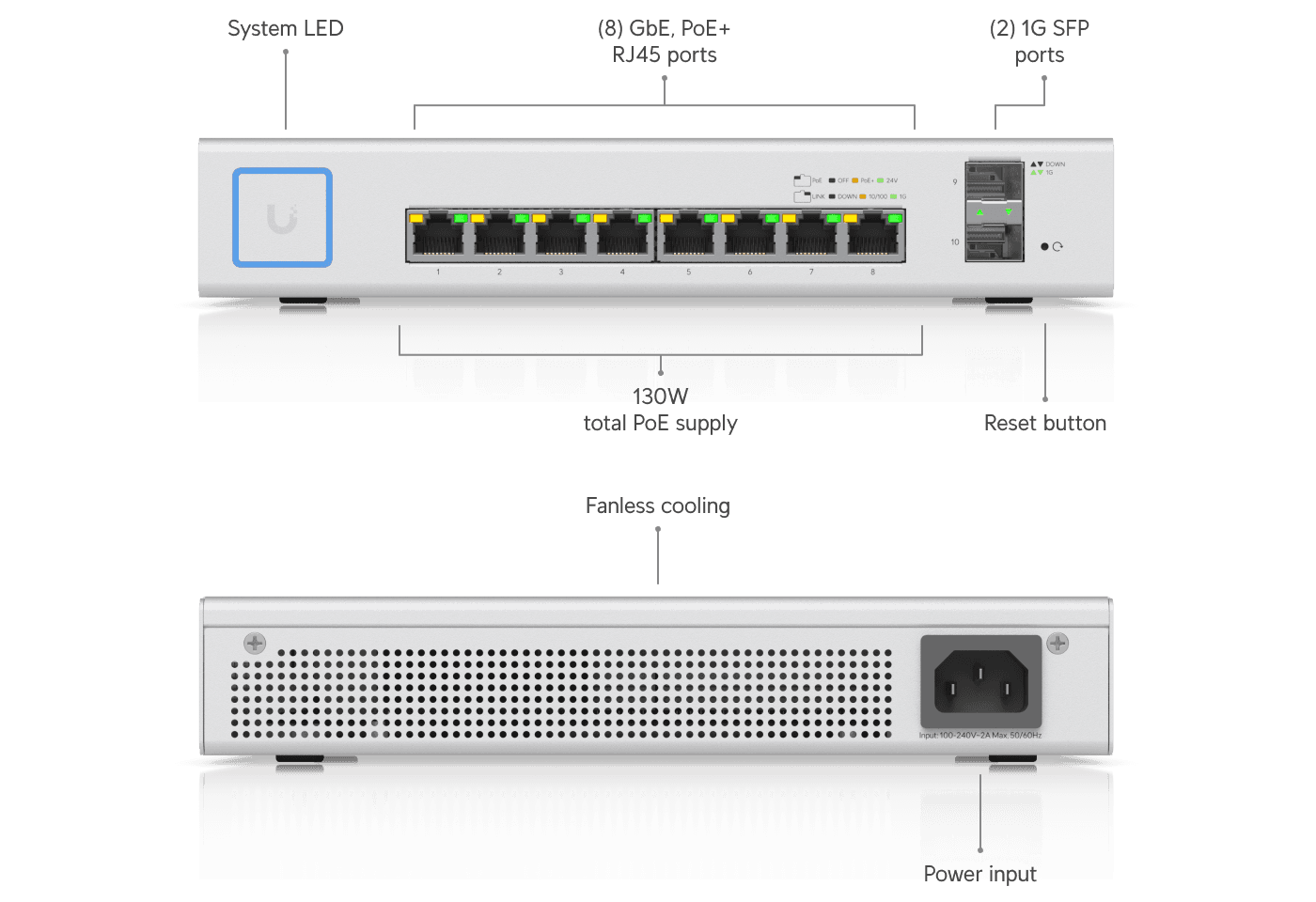

      The UniFi® Switch delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.

      UNIFI SWITCH 8 (150W)

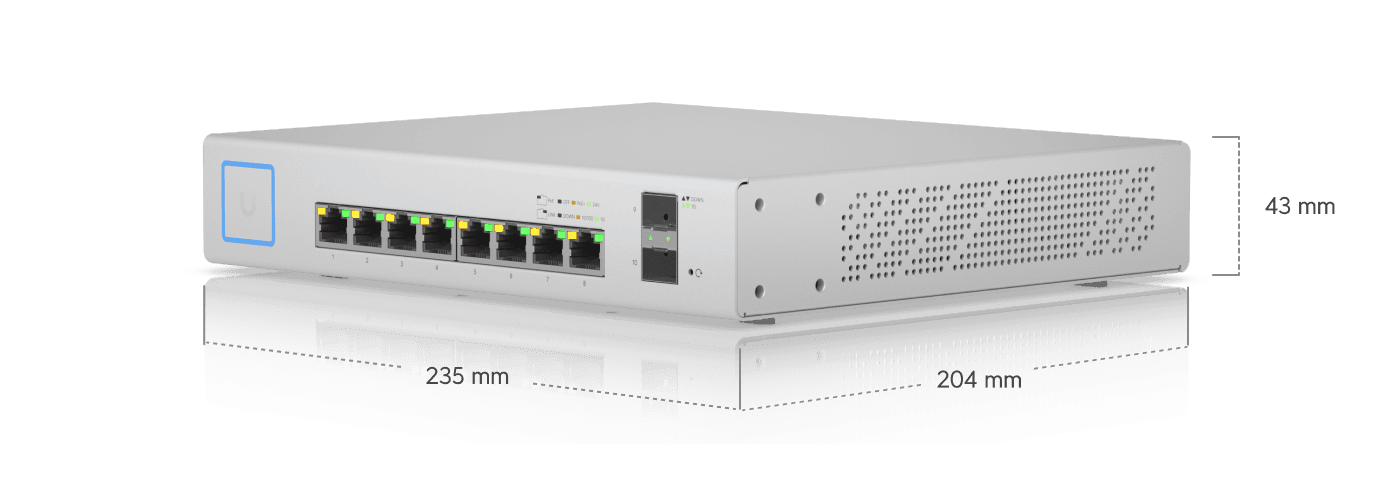

      Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
      Weight 1.65 kg (3.64 lb)
      1.73 kg (3.81 lb) With Mount Brackets

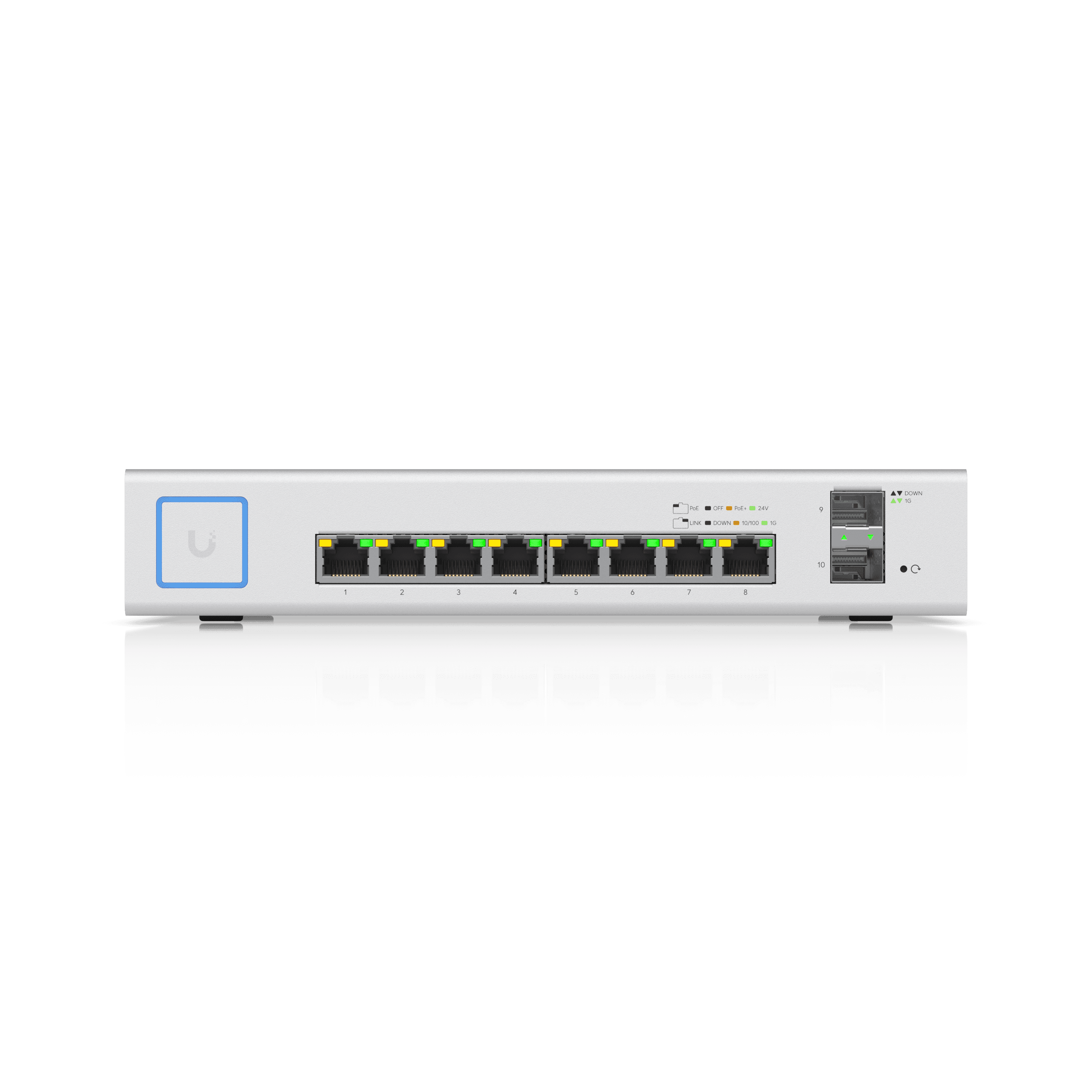

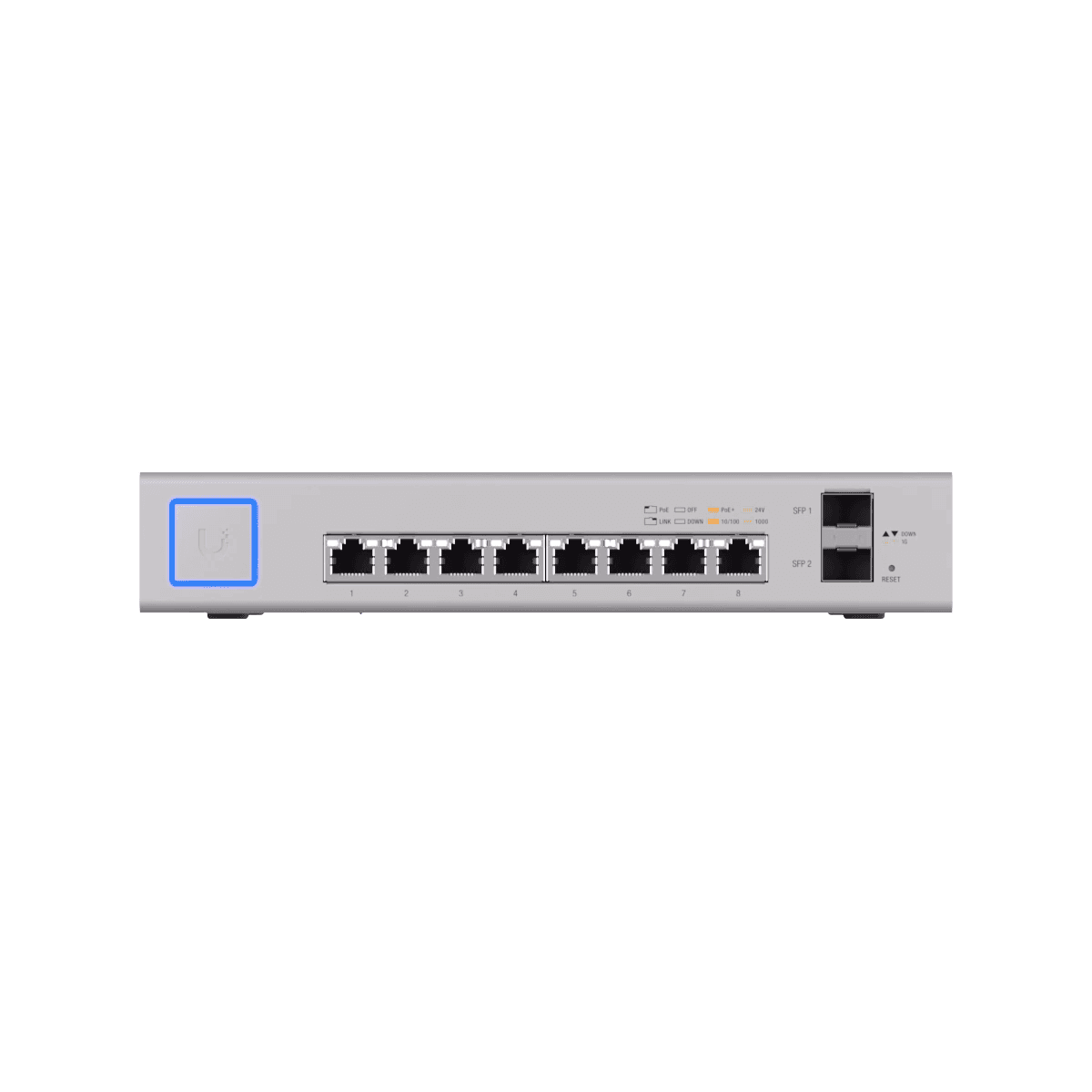

      Interfaces (8) 10/100/1000 Mbps RJ45 Ports
      (2) 1 Gbps SFP Ports
      Management Ethernet In-Band

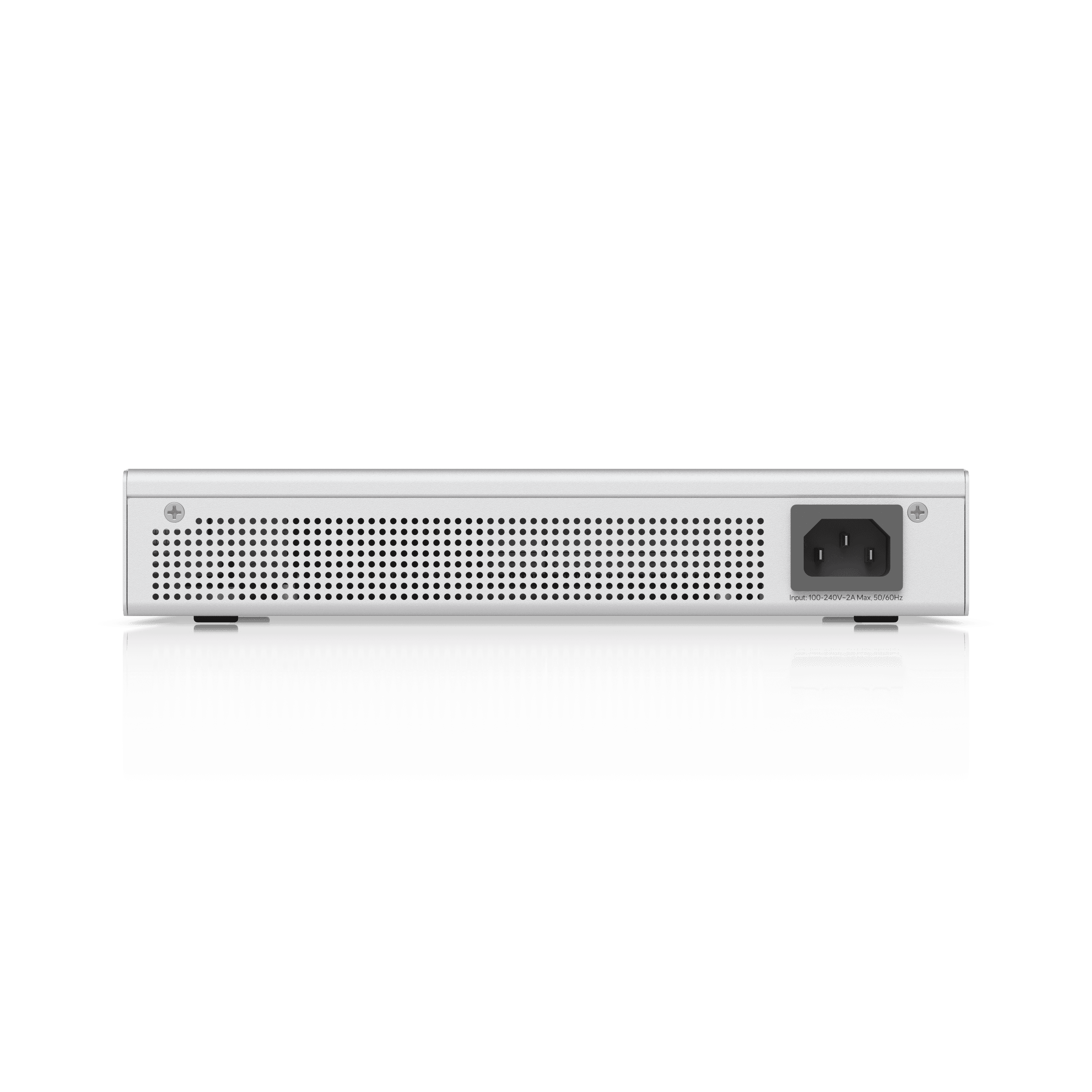

      Power Method 100-240VAC/50-60 Hz, Universal Input
      Power Supply AC/DC, Internal, 150W DC
      Max. Power Consumption Including PoE Output: 150W
      Excluding PoE Output: 20W
      Processor Specs ARM Cortex-A9 400 MHz
      Memory Information 256MB DDR3
      Code Storage 32 MB NOR Flash
      Line Rate 10 Gbps, Non-Blocking
      LEDs System: Status
      RJ45 Data Ports: PoE; Link/Speed/Activity
      SFP Data Ports: Link/Speed/Activity
      PoE Output (RJ45 Ports) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6)
      Passive 24V/0.7A 2-Pair (+4, 5; -7, 8)
      ESD/EMP Protection ± 24kV Air, ± 24kV Contact
      Shock and Vibration ETSI300-019-1.4 Standard
      Operating Temperature -5 to 45° C (23 to 113° F)
      Operating Humidity 5 to 95% Noncondensing
      Certifications CE, FCC, IC
This product has a maximum quantity limit of ${max} per customer
  • UniFi Switch 8 (150W)
  • UniFi Switch 8 (150W)
  • UniFi Switch 8 (150W)
  • UniFi Switch 8 (150W)
  • UniFi Switch 8 (150W)

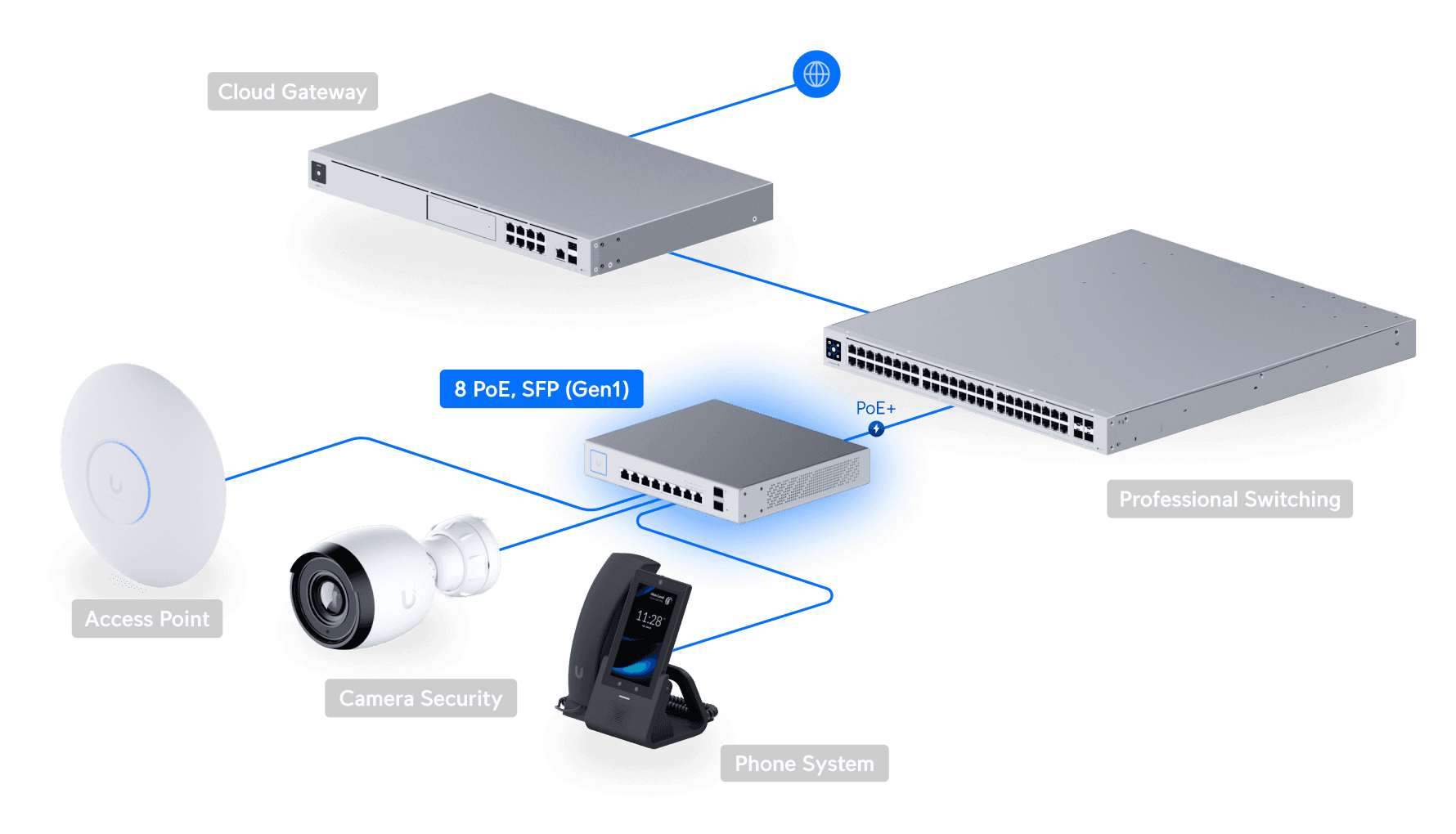

Works with UniFi Network Controller

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support
