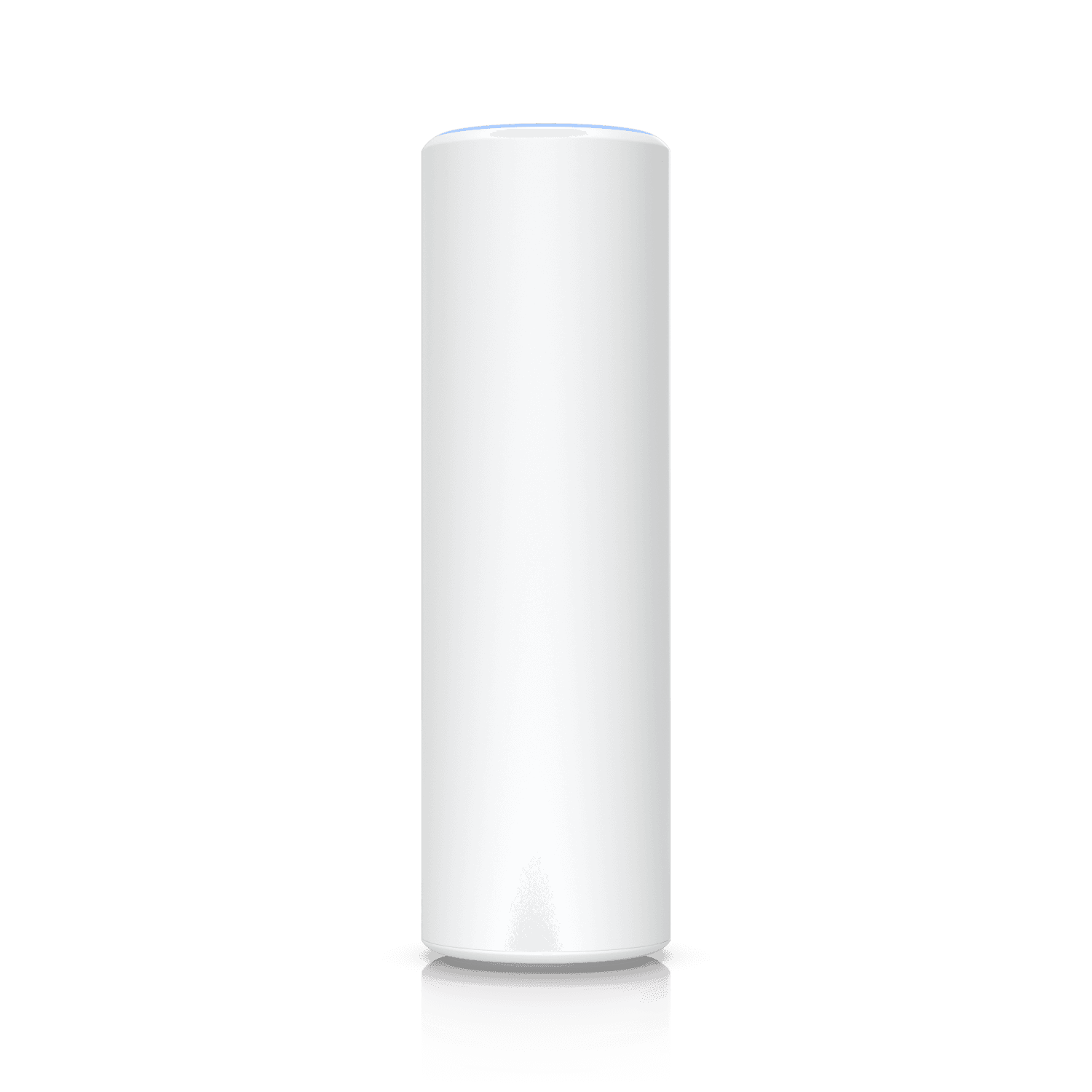

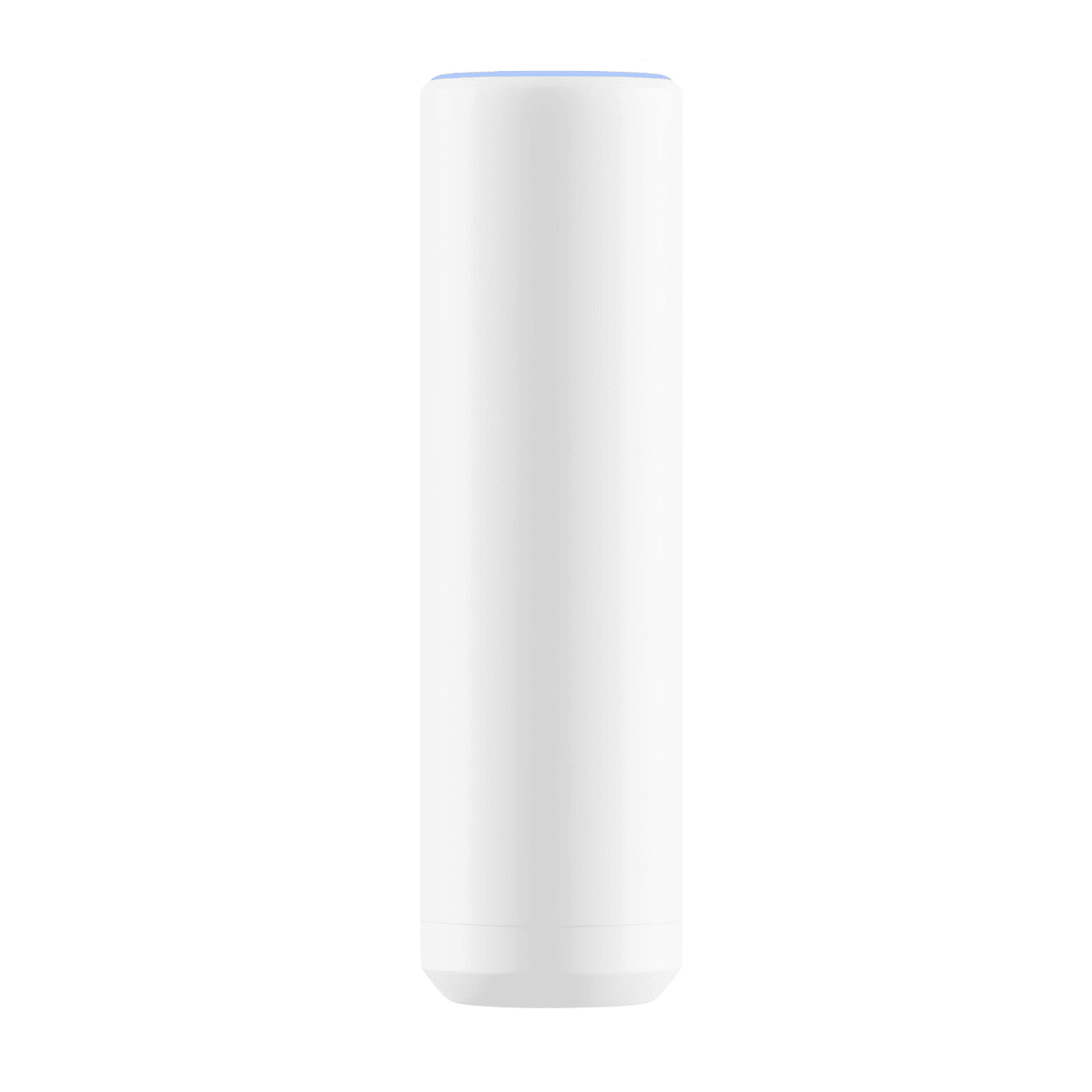

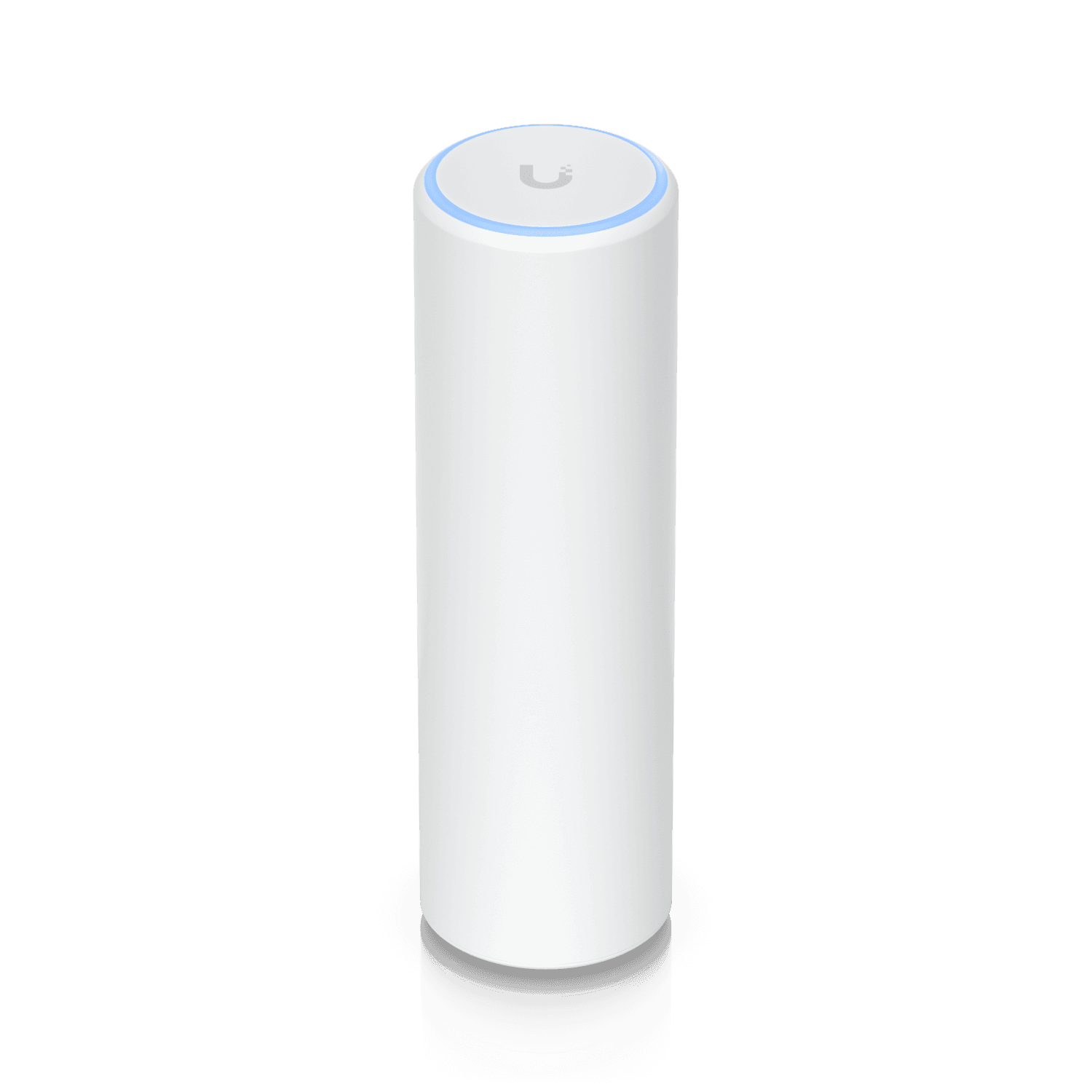

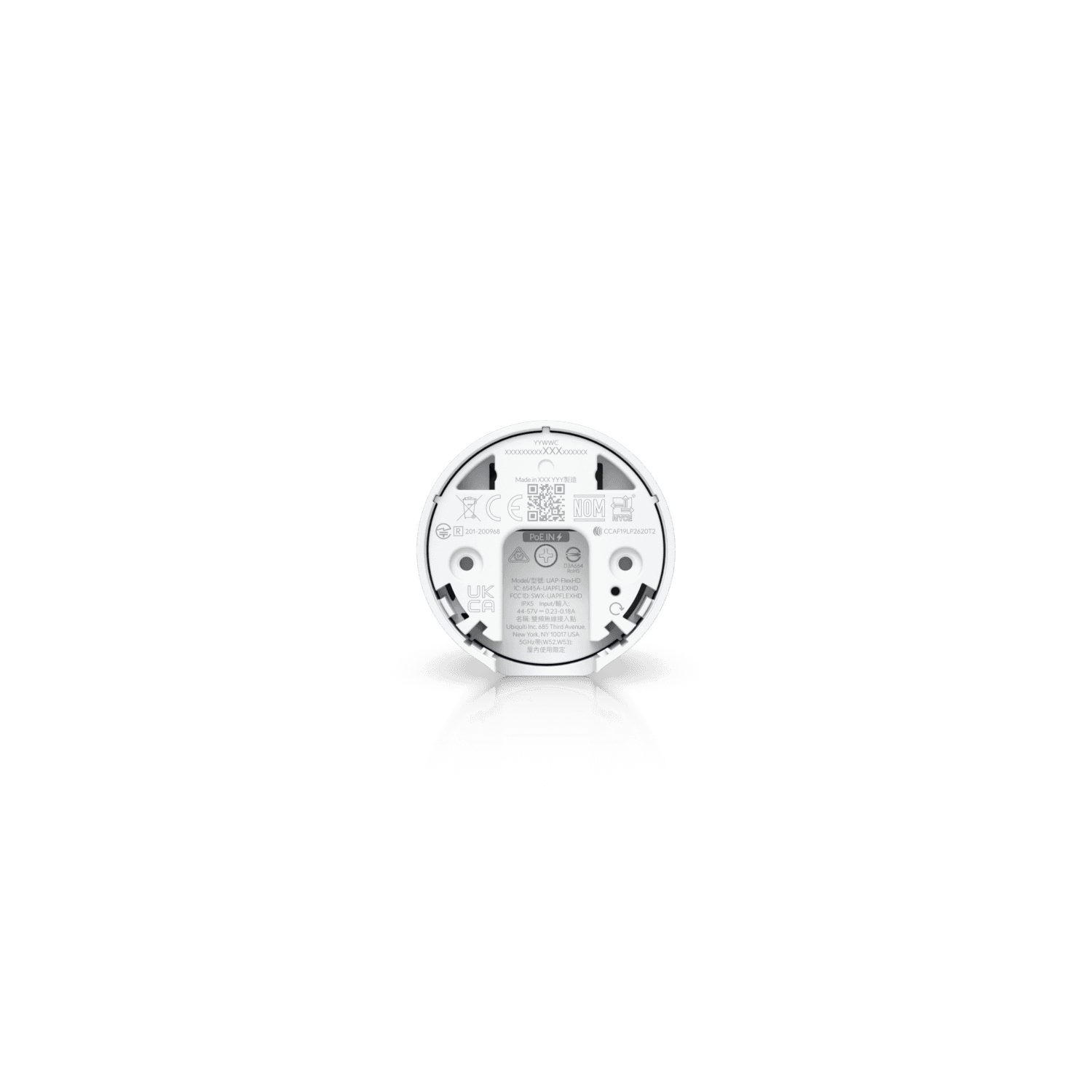

The Access Point FlexHD (UAP FlexHD) is a 802.11ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (802.11n, 2x2 MIMO) bands. The UAP FlexHD&#39;s narrow form allows you to stage it anywhere indoors where you need stronger wireless connectivity. You can also use the included wall or pole-mounting brackets to deploy the UAP FlexHD outdoors and expand coverage throughout your entire residence or business. The UAP FlexHD can be set up in minutes and fully managed with the UniFi Network web application or UniFi mobile app.
Features:
<ul>
<li>802.11ac Wave 2 WiFi technology</li>
<li>5 GHz (802.11ac, 4x4 MU-MIMO) band with a 1.733 Gbps throughput rate</li>
<li>2.4 GHz (802.11n, 2x2 MIMO) band with a 300 Mbps throughput rate</li>
<li>Can be deployed inside or outdoors</li>
<li>Included tabletop, wall, and pole mounting brackets</li>
</ul>
Managed with the UniFi Network application: Version 5.11.27 and later

Installation Guide

Datasheet

UAP-FlexHD

Sleek 802.11ac Wave 2 access point ideal for home or business use.

Access Point FlexHD

FlexHD

Default

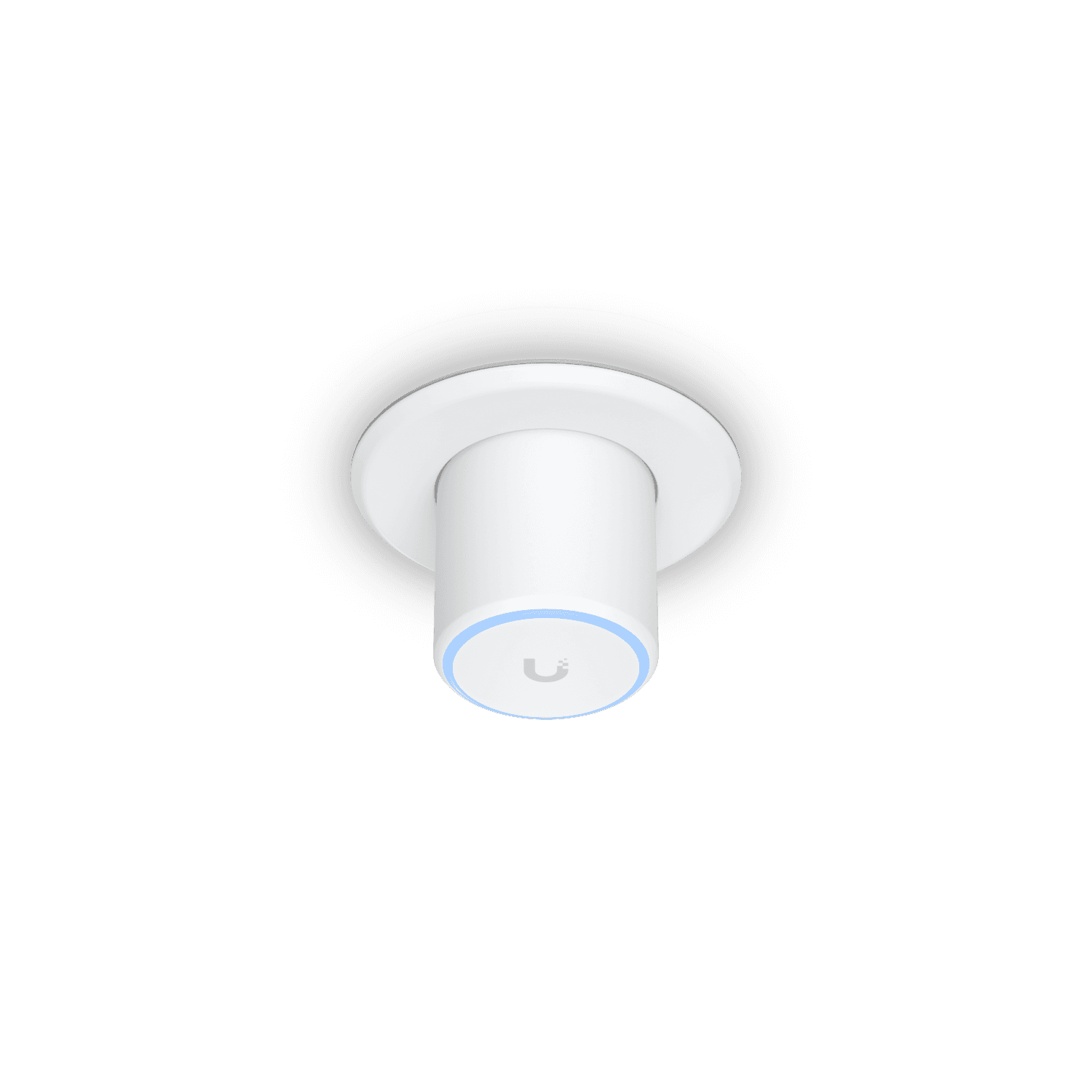

Low-profile mount for FlexHD and U6 Mesh that can be installed within drywall*, drop ceiling tiling, and other solid ceiling materials.
Features:
Snap-in lock for easy, secure AP attachment
Adjustable, threaded, sliding retainer** for mounting without screws
Magnetic face plate
*Drywall mounting hardware included.
**Requires a 2 1/8&quot; (54 mm) cut-out.

FlexHD-CM-3

Recessed ceiling mount for FlexHD and U6 Mesh access points.

Mechanical

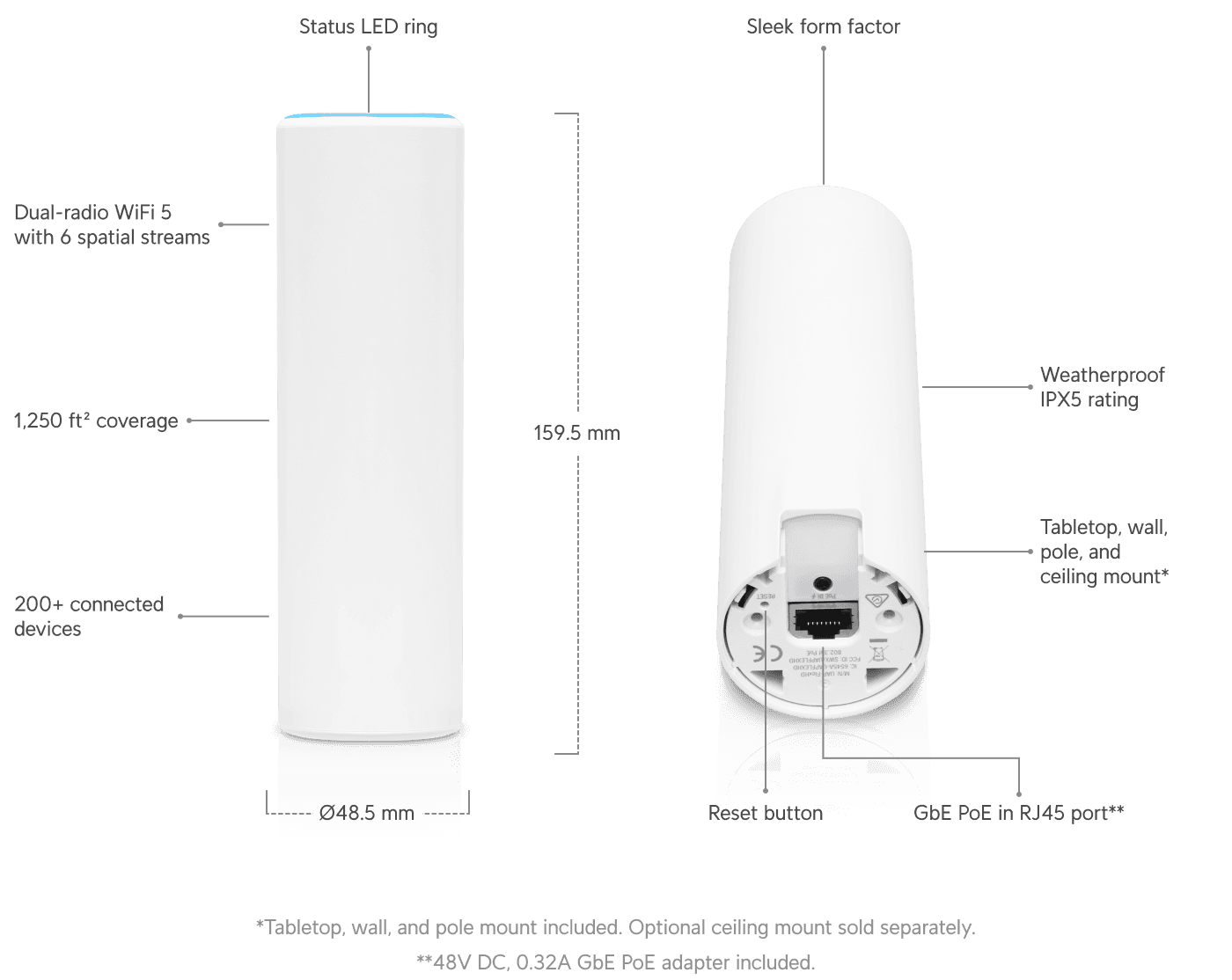

Dimensions	Ø48.5 x 159.5 mm (Ø1.9 x 6.28")
Weight	315 g (0.69 lb)
Hardware

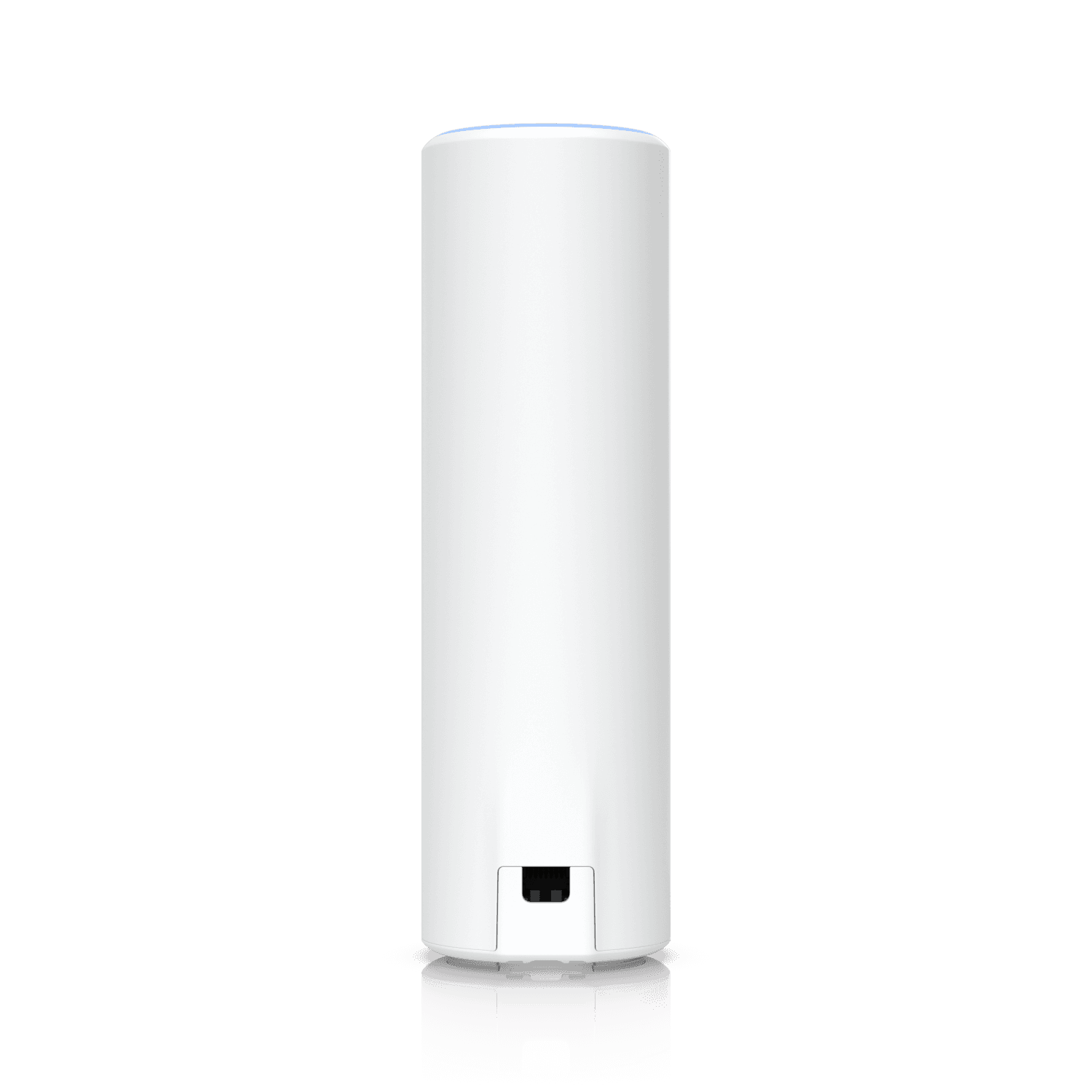

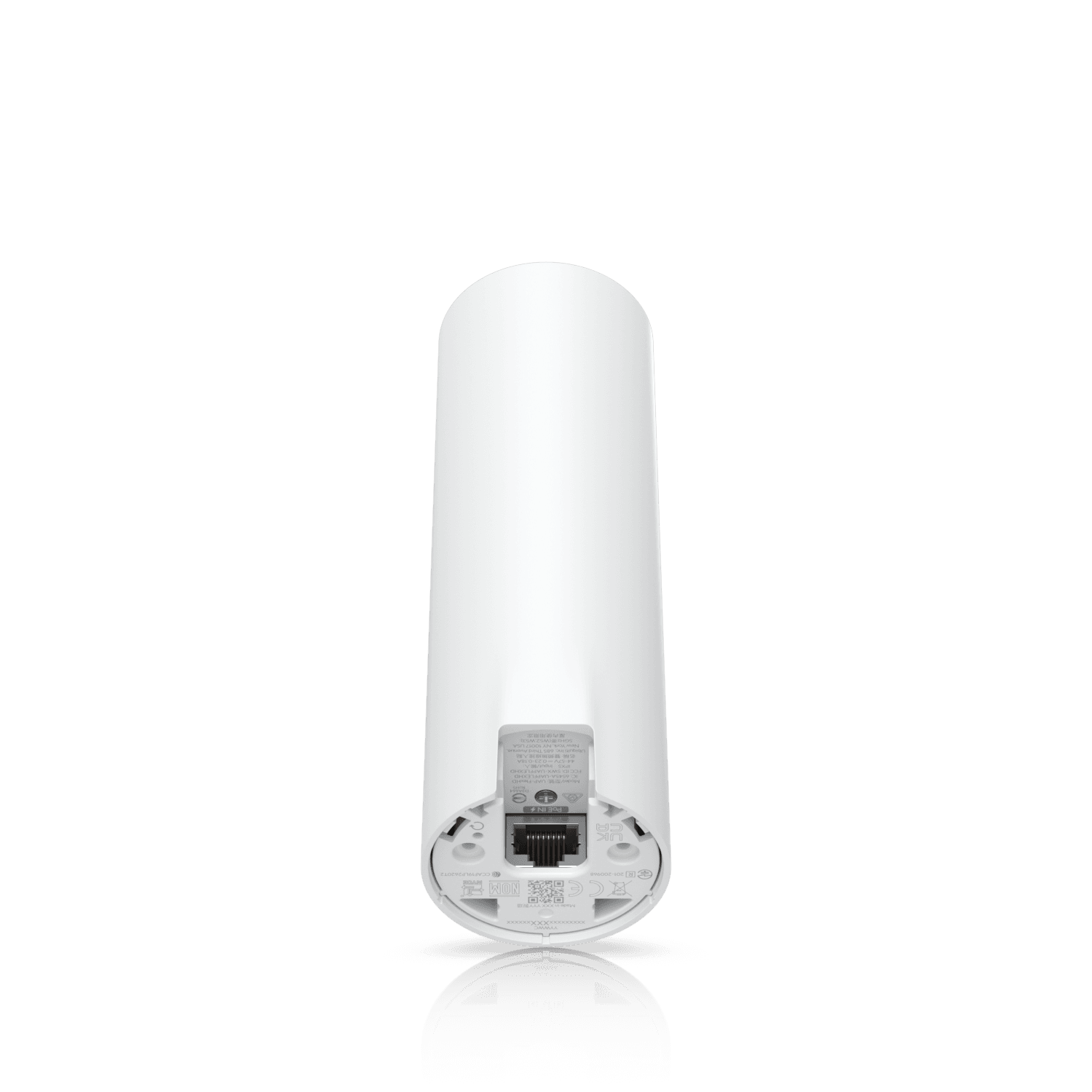

Networking interface	(1) GbE RJ45 port
Management interfaces	Ethernet Bluetooth
Power method	PoE
Power supply	UniFi PoE switch 48V, 0.32A Gigabit PoE adapter (Included)
Supported voltage range	44—57V DC
Max. power consumption	10.5W
Max. TX power 2.4 GHz 5 GHz	23 dBm 26 dBm
MIMO 2.4 GHz 5 GHz	2 x 2 4 x 4
Throughput rate 2.4 GHz 5 GHz	300Mbps 1733 Mbps
Antenna gain 2.4 GHz 5 GHz	1.6 dBi 4 dBi
Button	Factory reset

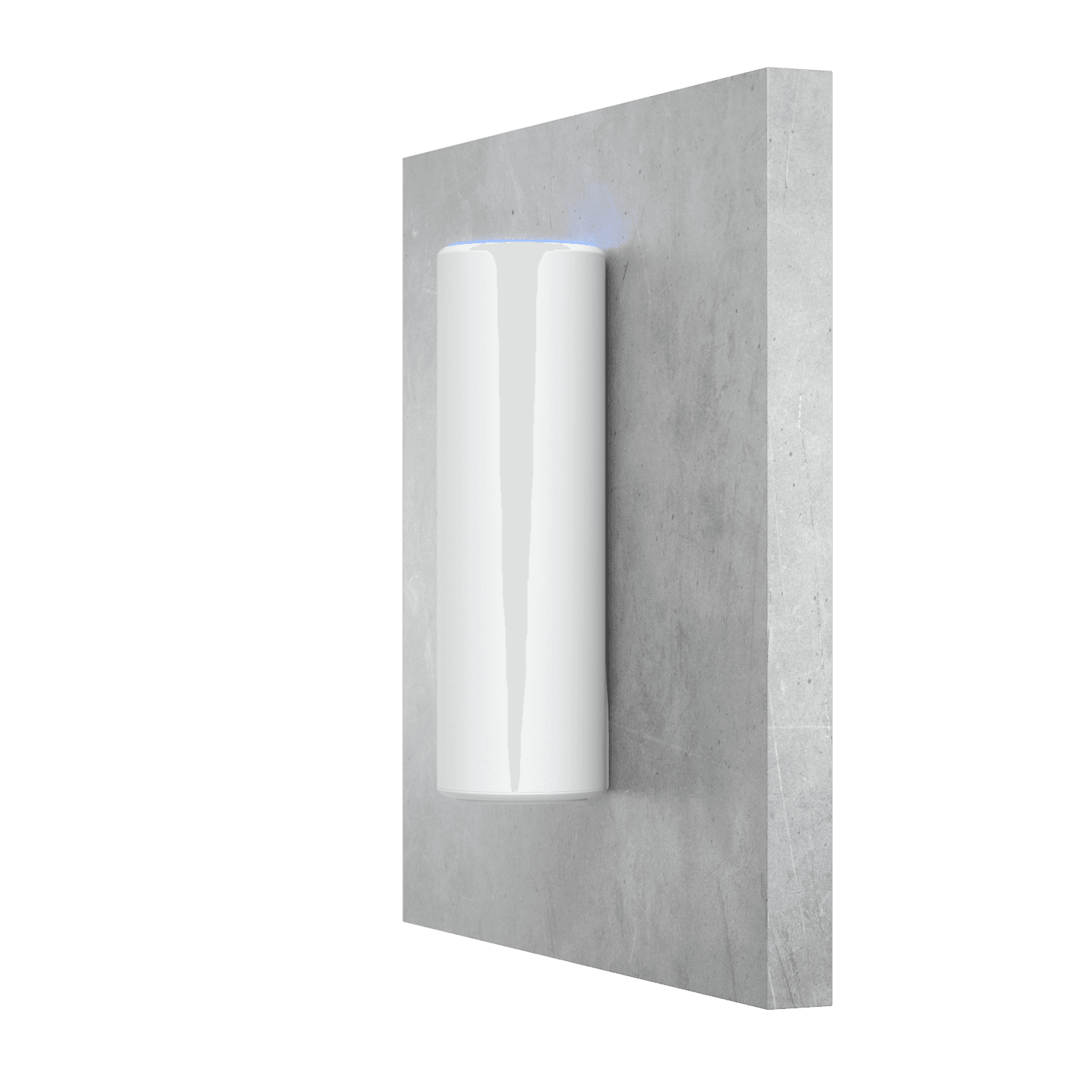

Mounting	Wall, desktop, pole mount (Included) Ceiling mount (Optional)
Operating temperature	-30 to 70° C (-22 to 158° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11 a/b/g/n/ac/ac-wave2
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	200+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
