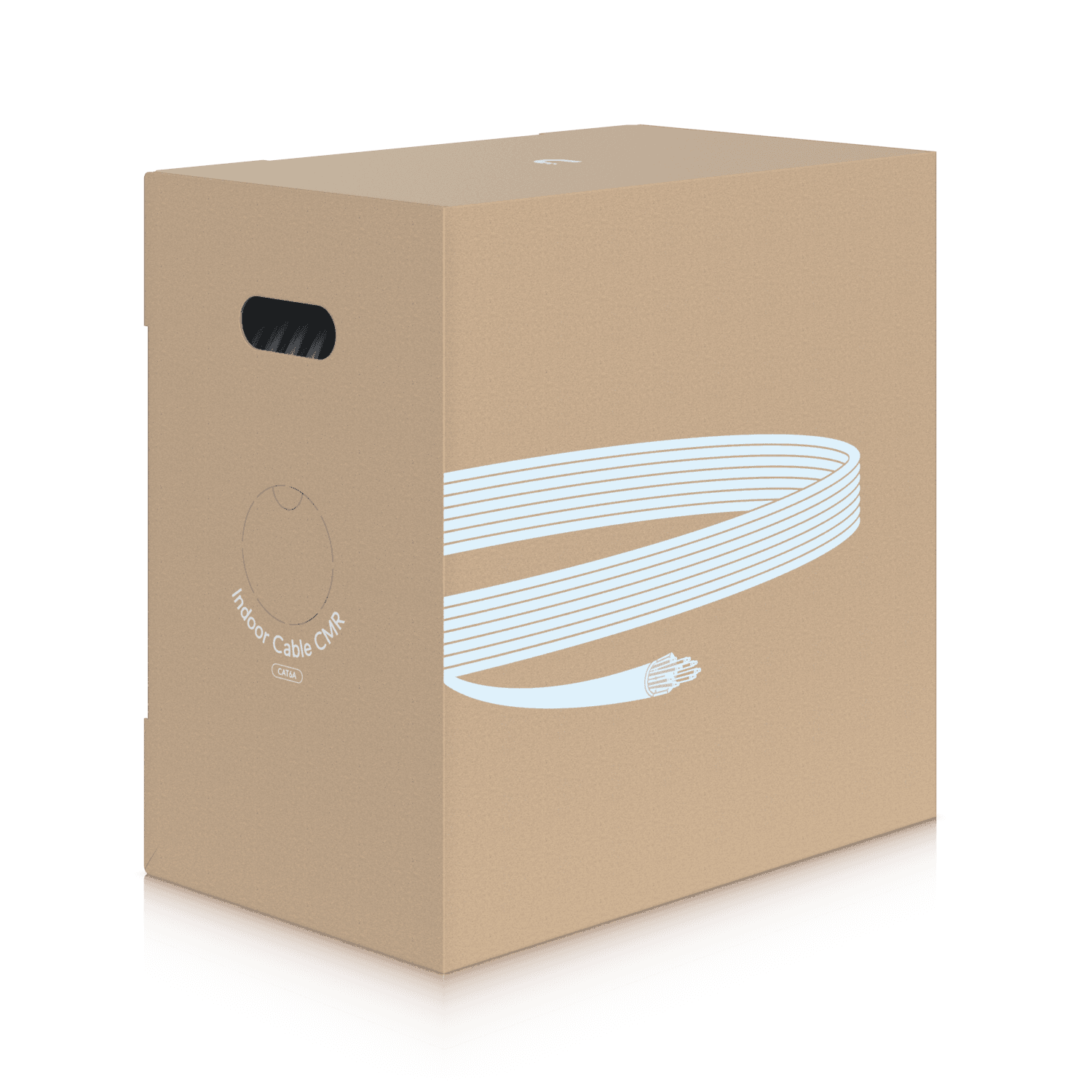

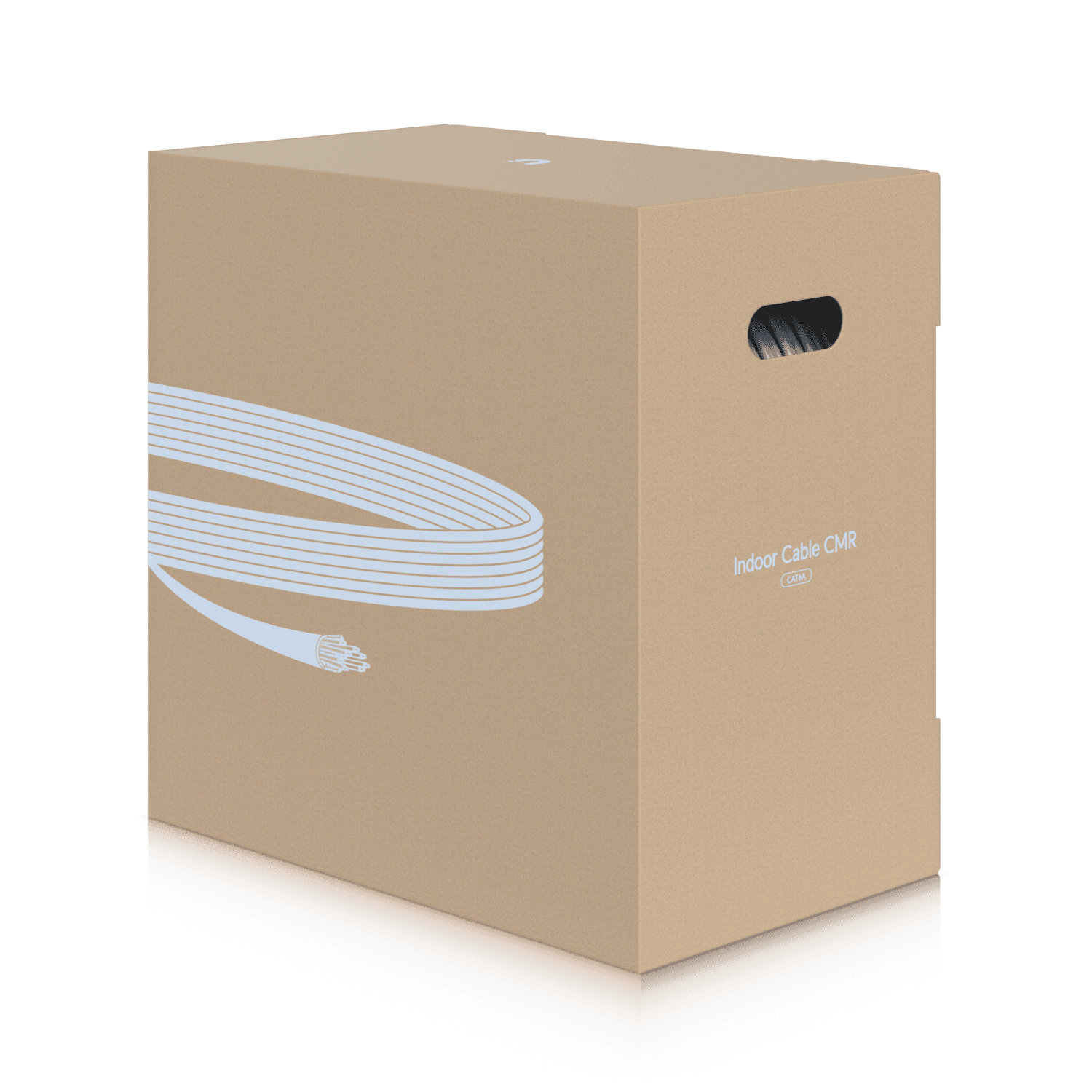

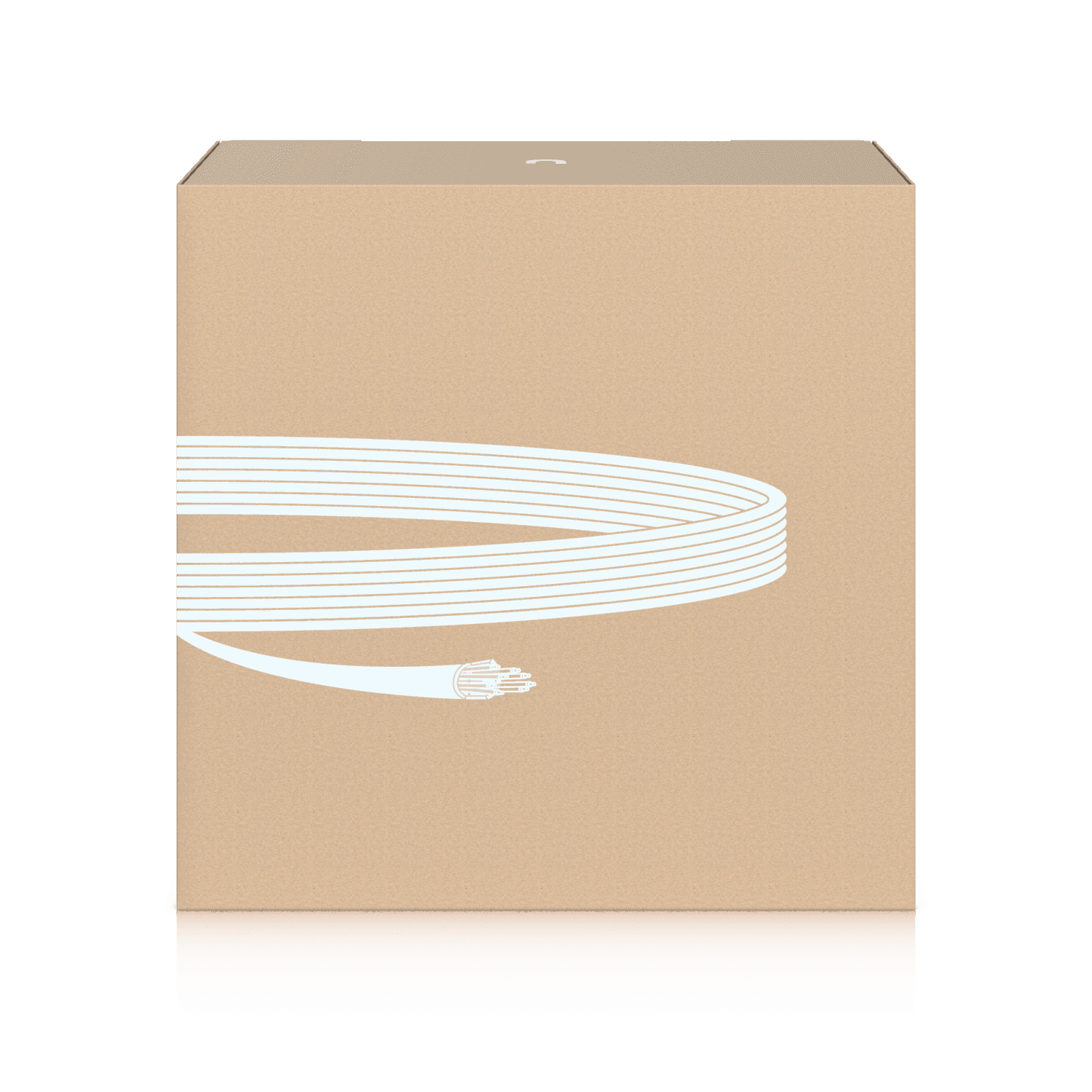

UniFi Indoor Cable Cat6A CMR
UACC-Cable-C6A-CMR
250,00 €
Sold Out
UniFi Indoor Cable Cat6A CMR
UACC-Cable-C6A-CMR
250,00 €
Sold Out
Category 6A Ethernet cable for high-speed, indoor deployments.
Category 6A UTP communications multipurpose cable
Riser (CMR)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
To subscribe to back in stock emails.
Powerful Accessories
35,00 €
Length
305 m (1,000 ft)
Type
Category 6A
Flame Rating
CMR
Operating Environment
Indoor
Box Dimensions
494 x 302 x 481 mm
(19.4 x 11.9 x 18.9")
Box Weight
19.3 kg (42.5 lb)
Cable
Jacket Color
White
Jacket Diameter
7.05 ±0.2 mm
Jacket Material
Flame retardant polyvinyl chloride (FRPVC)
Shielding Type
UTP
Conductor Type
Solid bare copper
Conductor Wire Gage
23 AWG
Bend Radius
Min. 28.2 mm (1.11 '')
Twisting
4 Twisted pairs with color code.
Pair 1: white / blue
Pair 2: white-orange / orange
Pair 3: white / green
Pair 4: white-brown / brown
Anti-Crosstalk Divider
✓
Ripcord
✓
Standards
Electrical Transmission
ANSI/TIA -568.2-D
ISO/IEC 11801-1 (Edition 2.2)
IEC 61156-5 (Edition 2.1)
Flame Test
UL 1666 (CMR)
Material and Construction
UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)
Installation Temperature
0 to 60°C (32 to 140°F)
Ambient Storage Temperature
-20 to 75°C (-4 to 167°F)
Ambient Operating Temperature
-20 to 75°C (-4 to 167°F)
