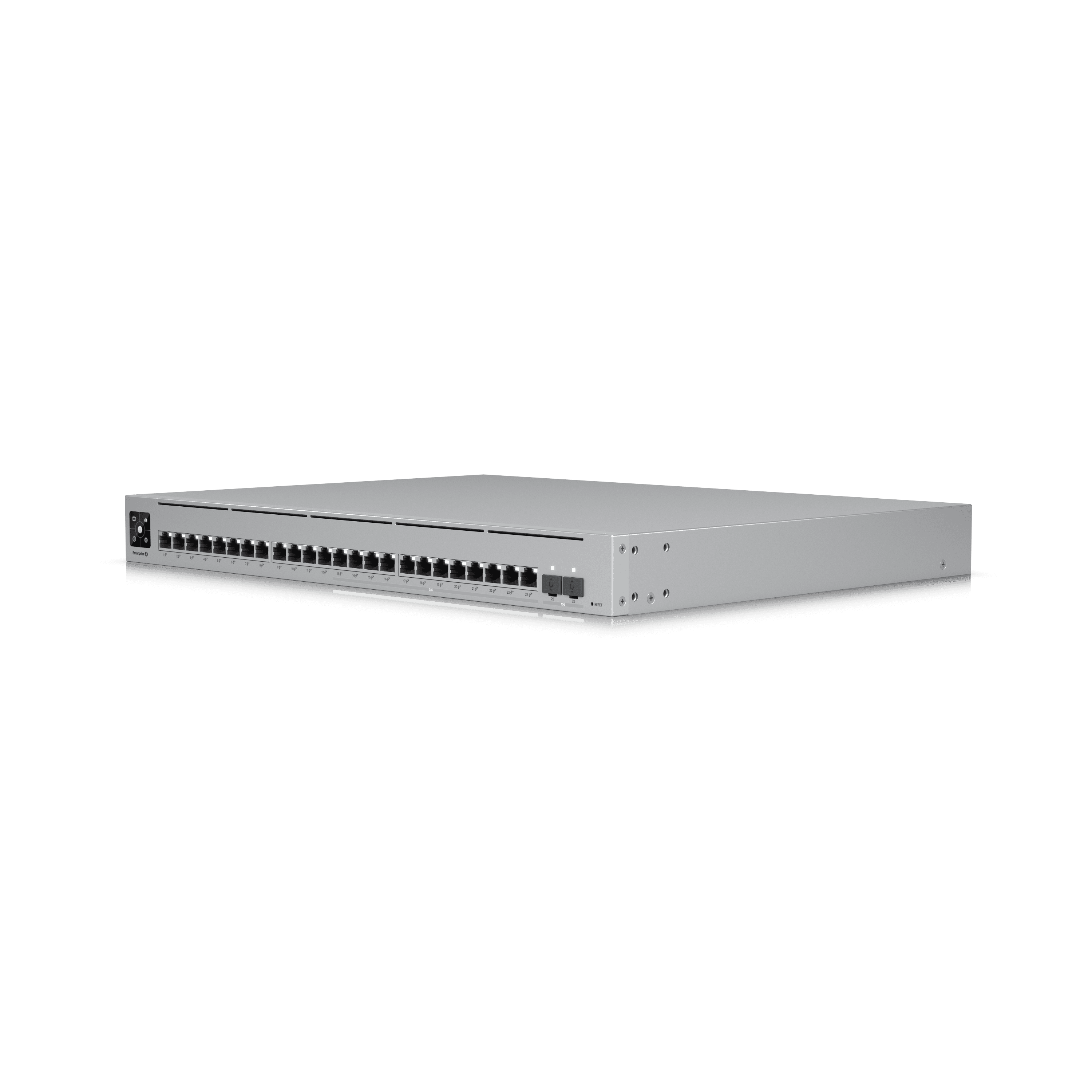

Enterprise 24 PoE (Gen1)
Not compatible with U7 and E7 PoE++ APs
USW-Enterprise-24-PoE (400W)
719,00 €
A 24-port, Layer 3 switch with 2.5 GbE PoE+ output.
Note. These switches are not compatible with the PoE++ requirements of the new U7 and E7 Access Points. We recommend using Enterprise Campus switches for such deployments.
- UI CareFive-year extended coverage.135,00 €/unit
719,00 €
1
Powerful Accessories (5)
From 12,00 €
From 18,00 €
From 75,00 €
From 145,00 €
60,00 €
Technical

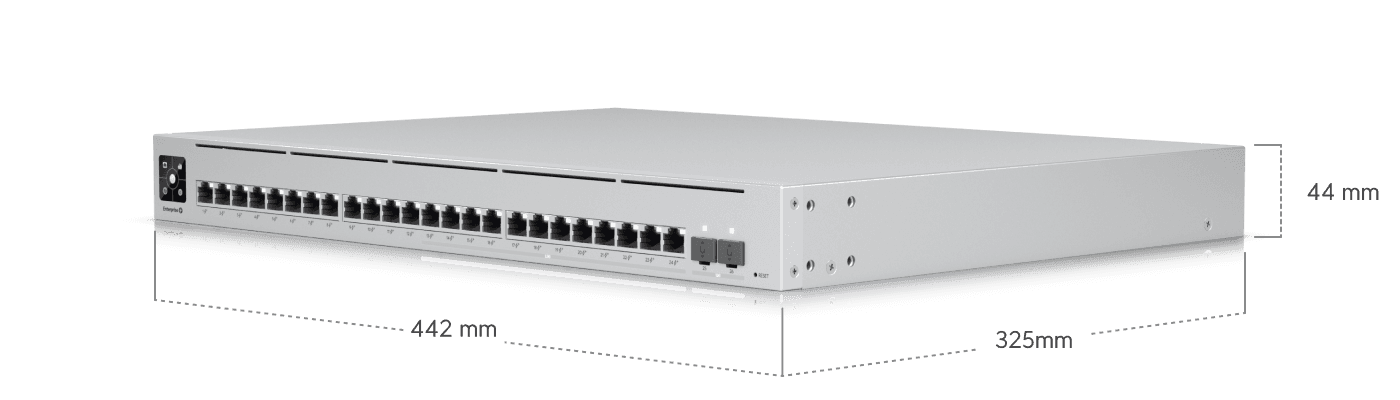

Dimensions
442 x 325 x 44 mm
(17.4 x 12.8 x 1.7")

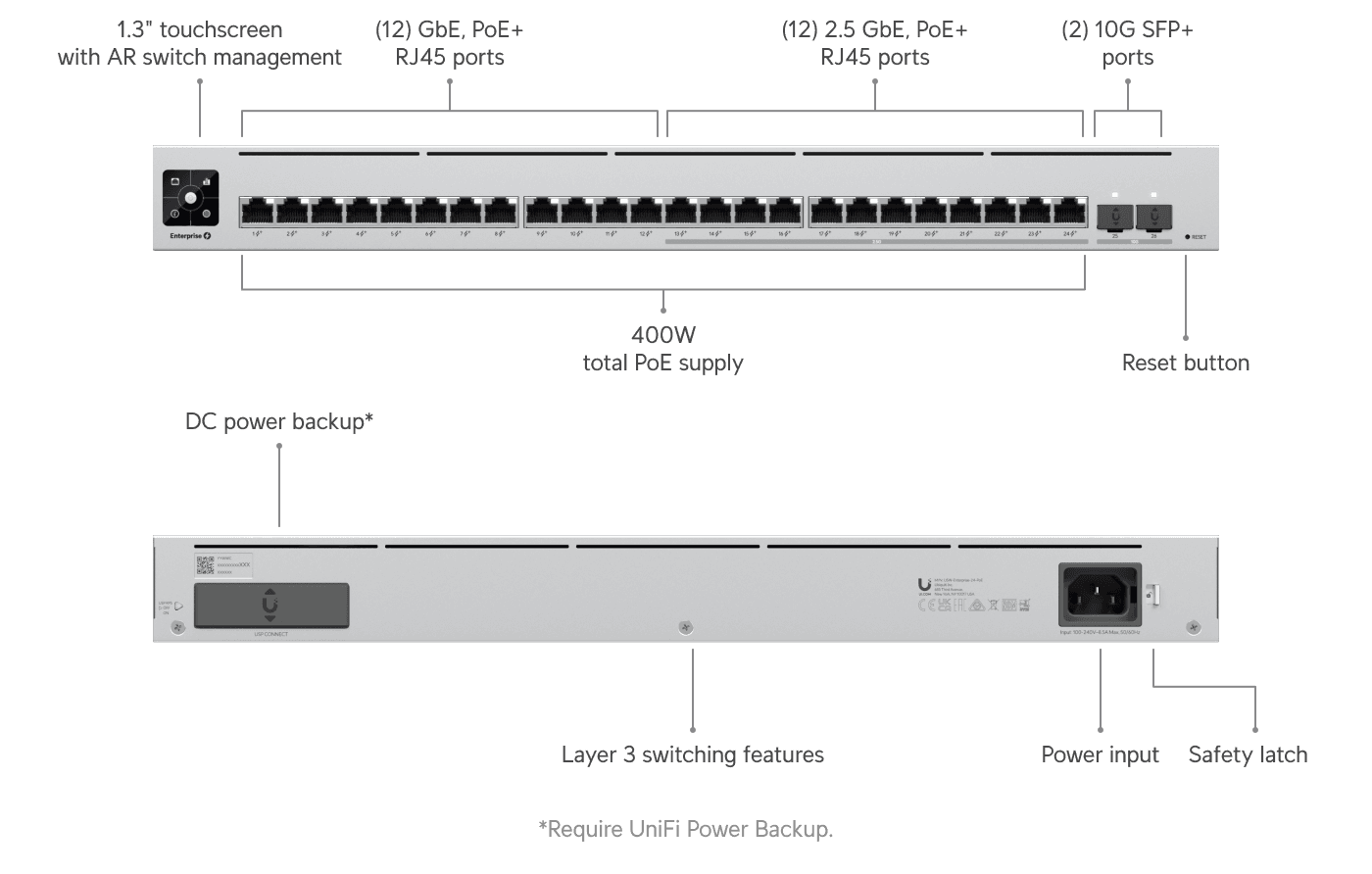

Port Layout
1 GbE RJ45
12 (All PoE+)
(1G/100M/10M)
2.5 GbE RJ45
12 (All PoE+)
(2.5G/1G/100M/10M)
10G SFP+
2
Max. PoE Output
Up to PoE+
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Switching Capacity
124 Gbps
Total Non-Blocking Throughput
62 Gbps
Forwarding Rate
92 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
4,000
IPv4 Routes
1,000
Packet Buffer Size
2 MB
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
PoE Ports
PoE+
24
Max. PoE Wattage per Port by PSE
PoE+
32W
Max. Power Consumption
60W (Excluding PoE Output)
460W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Heat Dissipation (Excluding PoE Output)
204.72 BTU/hr
Weight
Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2")
LCM Display
1.3" touchscreen
ESD/EMP Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
Application Requirements
UniFi Network
Version 5.14.12 and later
